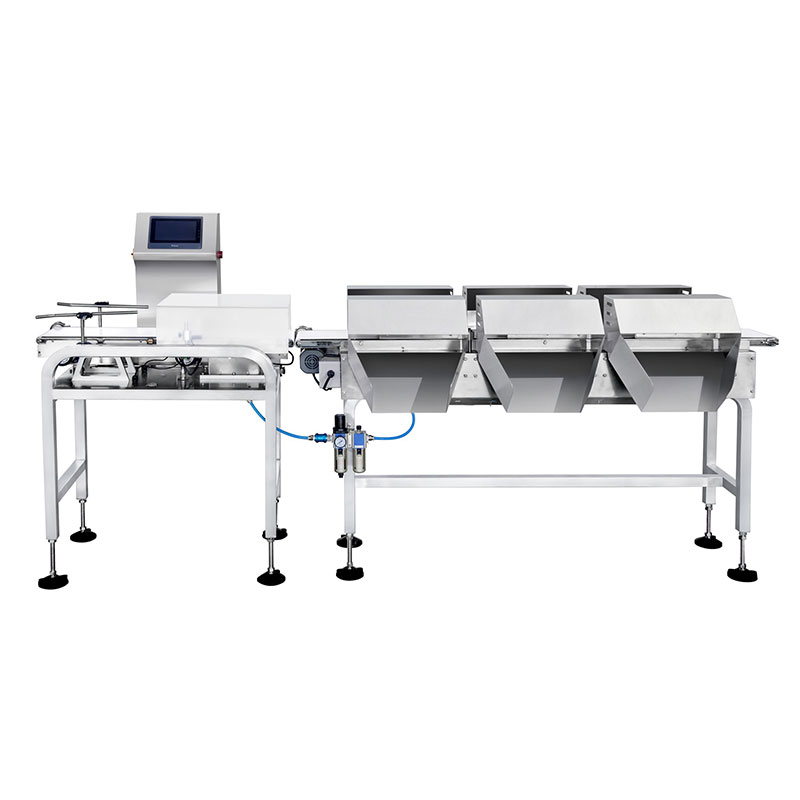

Multifunctional Multi-Level Check Weigher for Weighing and Sorting Food Package

Application

multi-level check weigher is suitable for weighing and sorting materials in agricultural, aquatic, industry and other industries. The packing status of the materials can be in the form of bags, boxes, etc.

Multifunctional Multi-Level Check Weigher for Weighing and Sorting Food Package

Features

1. Intelligent design, automatic parameter adjustment and easy operation.

2. Material dense alarm, automatic generate column production report.

3. Conveyor structure adopts detachable design for easy disassembly and cleaning.

4. PLC control system, standard industrial control screen, easy to expand other value-added applications, such as multi-stage weight sorting, weight feedback, etc.

Mechanical Character

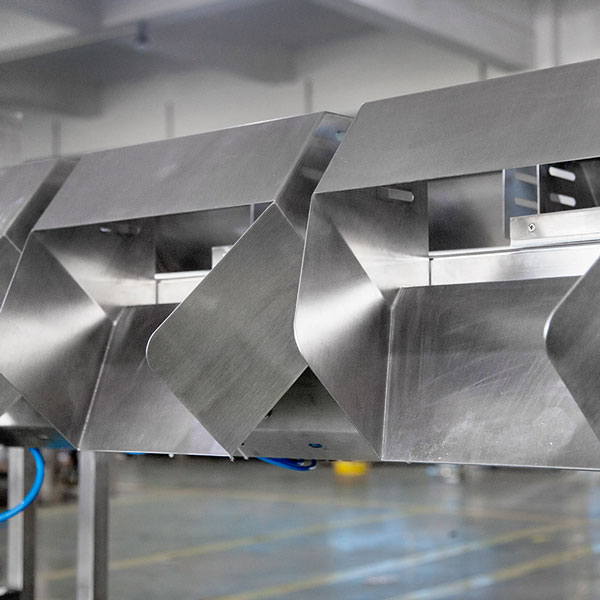

The selection section has 6 levels of sorting, which can satisfy the sorting of different weight ranges of materials.

Technical Specification

ModelJW-C1000
Identify CodeC1000-1-2
Weighing Range100-1000g
AccuracyXIII(1)
Max.Belt Speed62m/min
Max Speed100P/M
Belt Size(mm)450(L)X220(W)mm
Control Panel7”Touch Screen
Reject MethodAir blowing/Air-reject/Pneumatic pusher/Slide type
Power Requirement220V/400W/50/60Hz/2A

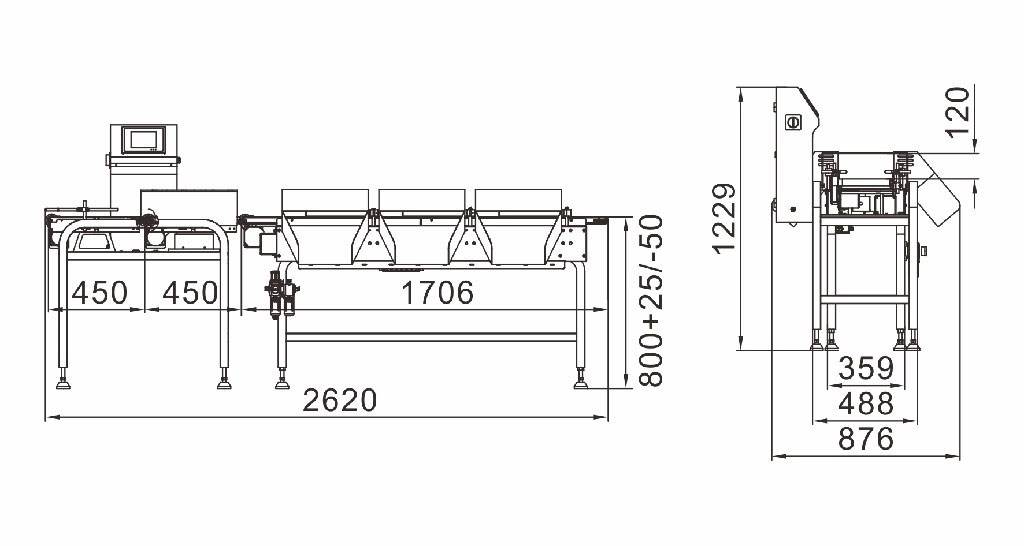

Packing Dimension(mm)1820(L)x1300(W)x1290(H)
Gross Weight250k


Product Details
