Application

Weigher for frozen food is suitable for weighing frozen foods, such as frozen fishes, fruit, frozen dumplings, rice dumplings, etc.

High Accuracy 10 Heads Computer Combined Weigher for Frozen Food

Features

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures, support multi-segment weight calibration.

3. No products auto pause function can improve weighing stability and accuracy.

4. Linear amplitude can be adjusted independently, can make the feeding more uniform.

5. 15 languages available for global markets.

6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.


Mechanical Character

1. Ip65 cabinet design, dimple plate for food contact parts.

2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.

3. Uniform design standards contribute to better interchangeability for spare parts.

4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.


Technical Specification

ModelJW-A10JW-A14
Identify CodeA10-1-7A14-1-7
Weighing Range10-1000g10-1500g
AccuracyX(0.5)X(0.5)
Max Speed65P/M120P/M
Hopper Volume1.6L/2.5L
Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1000W/50/60Hz/10A220V/1500W/50/60Hz/12A
Packing Dimension(mm)1620(L)x1100(W)x1110(H)1750(L)x1130(W)x1200(H)
Gross Weight380kg490kg

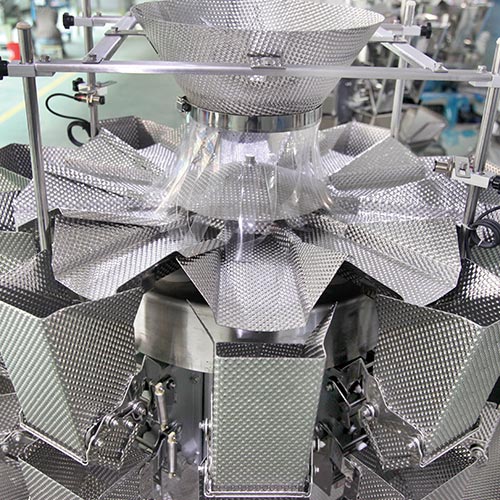

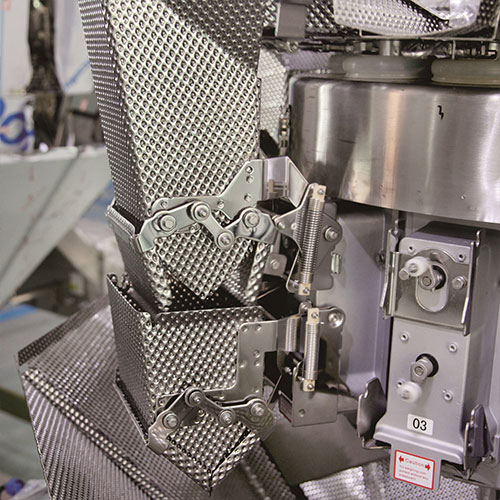

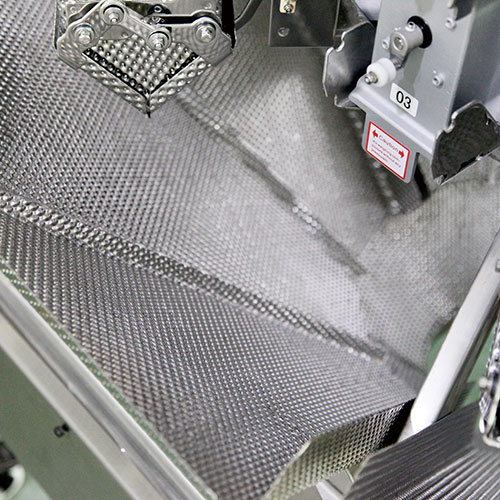

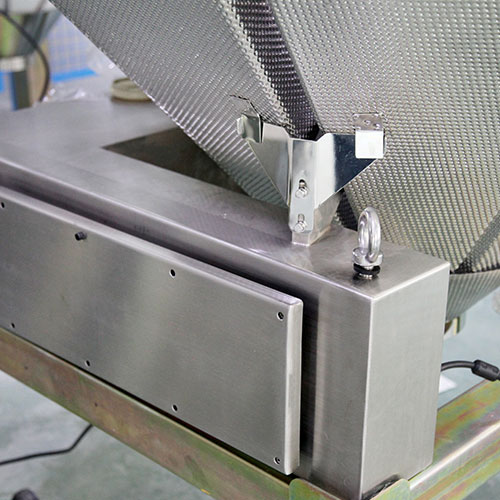

Product Details
