Multifunctional combined check weigher and metal detector for food and pharmaceutical industry


Combined check weigher and metal detector is widely used for food, pharmaceutical, chemical, textile, clothes, toys, rubber etc. It is the first choice for HACCP of food industry and GMP of pharmaceutical industry.


1.32 kinds of languages to choose, 7' standard industrial touch screen displays weight and metal detecting, easy to operate, new industry standard.

2.Three levels speed to choose in the touch screen, suits for different packaging line with different packaging speed.

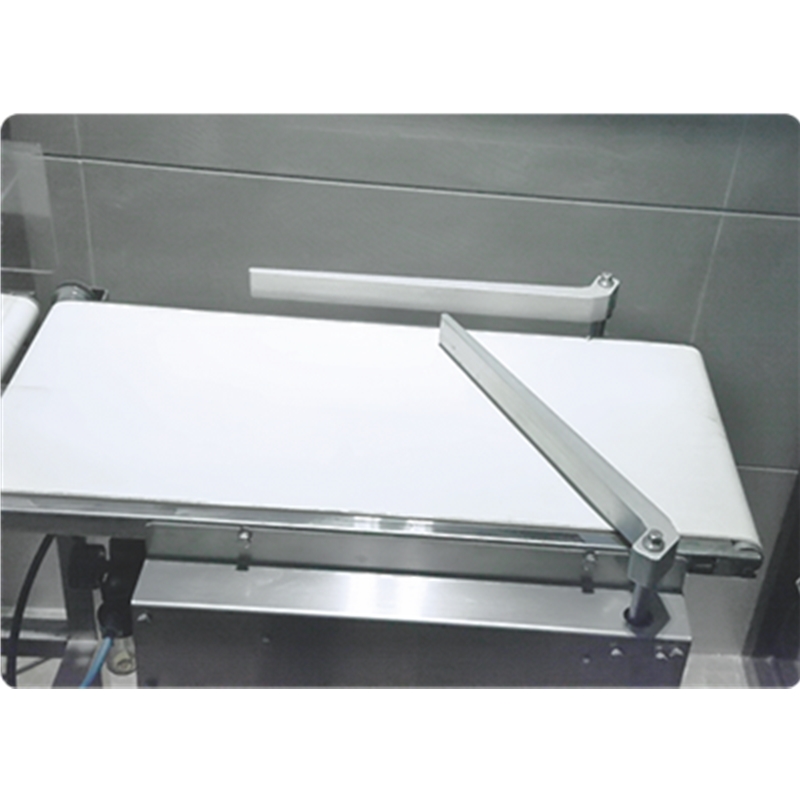

3.Independent automatical rejecting device of weight and metal.

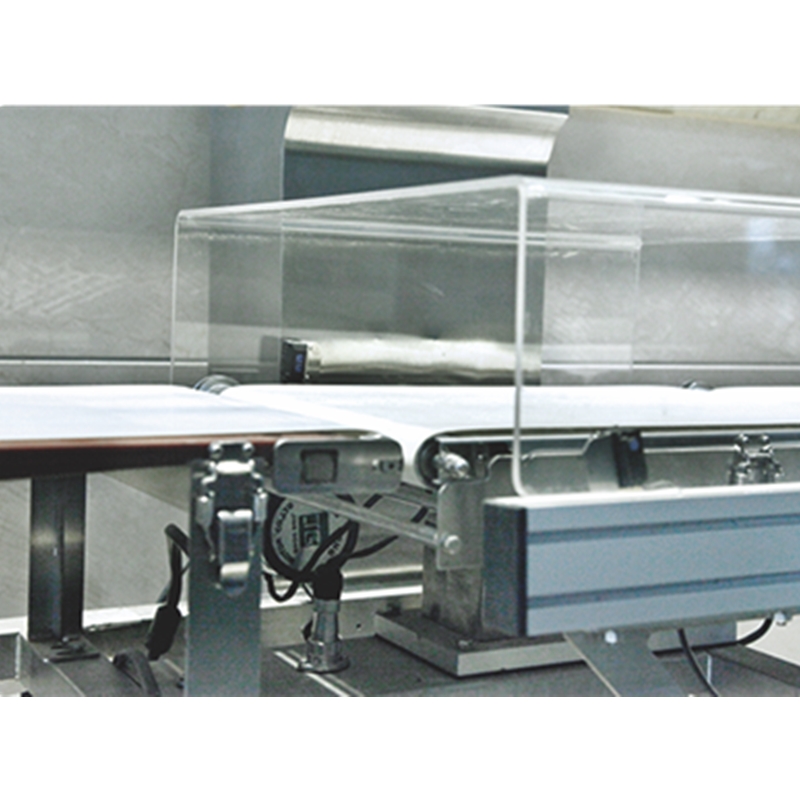

4.Detachable belt design, easy to clean and maintain.

Mechanical character

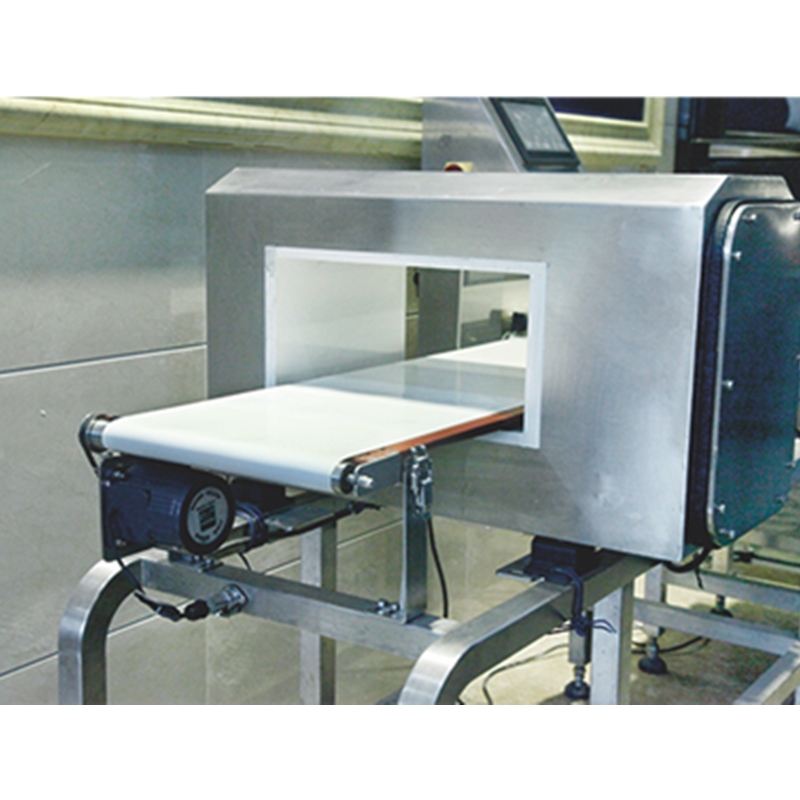

It combines metal detector with check weigher, and detects the weight and metal at the last step of inside packaging. It increases producing safety and reliability, also saves producing space.

Technical specification

Identify CodeGC212-1-1GC215-1-1GC315-1-1GC320-1-1
Protection ClassIP54/IP66
Reject MethodAir blowing/Air-reject/Pneumatic pusher/Slide typePneumatic pusher/Slide type
Max Package Size(mm)300(W)x120(H)300(W)x150(H)400(W)x150(H)400(W)x200(H)
Sensitivity(mm)Fe:φ0.8  Sus:φ1.5Fe:φ1.0  Sus:φ2.0Fe:φ1.0  Sus:φ2.0Fe:φ1.2  Sus:φ2.5
Power Requirement220V/440W/50/60HZ/2A220V/440W/50/60HZ/2A220V/660W/50/60HZ/3A220V/660W/50/60HZ/3A

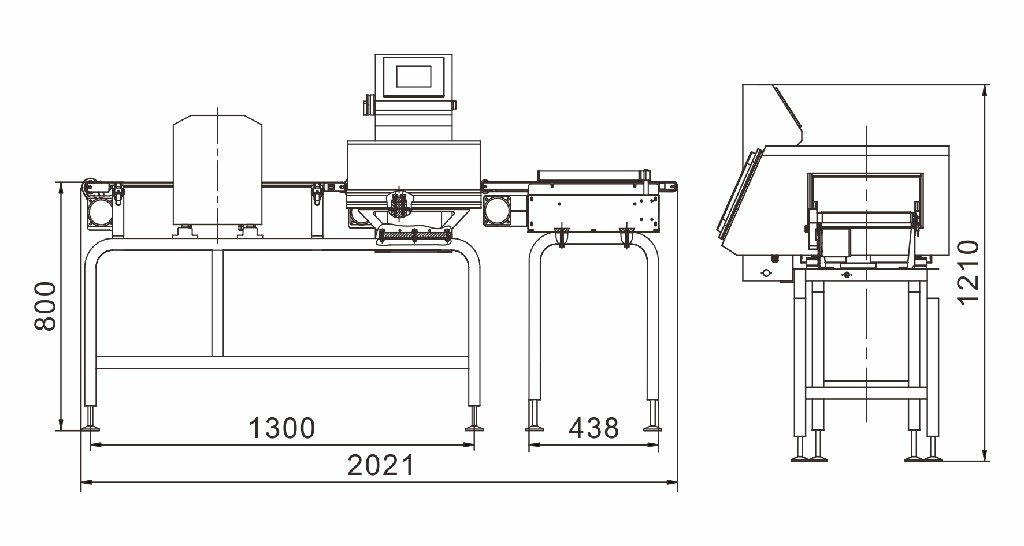

Packing Dimension(mm)1460(L)x1140(W)x1280(H)1460(L)x1200(W)x1280(H)1940(L)x1540(W)x1360(H)2080(L)x1480(W)x1360(H)
Gross Weight270kg290kg380kg390kg

Product Details
