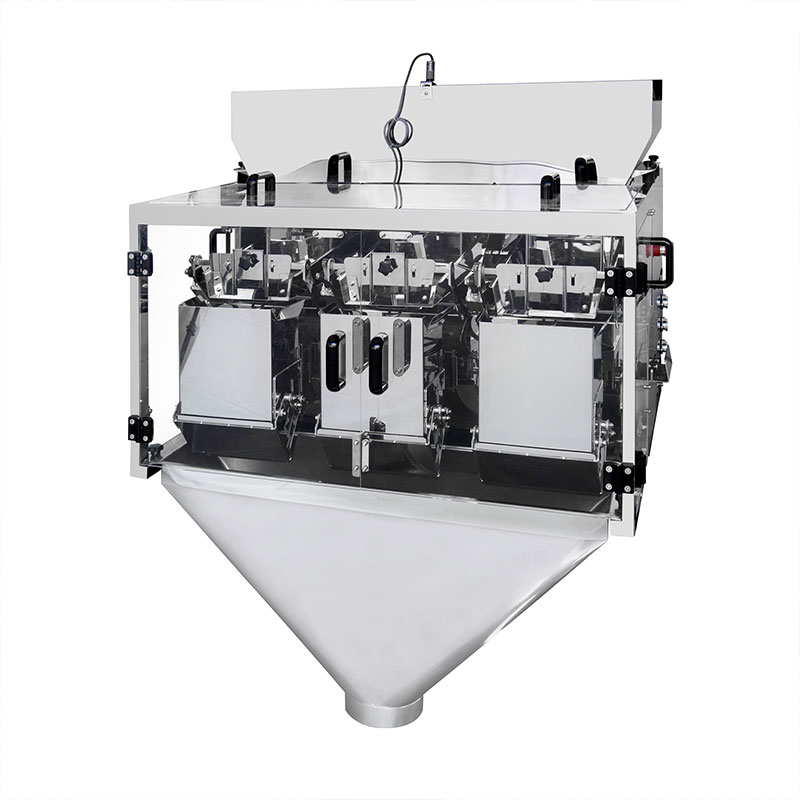

Economic 3 Head Linear Scale for Weighing Sesame, Seasoning Powder, Salt, Rice Packing

Application

3 Heads linear weigher is suitable for weighing small granules such as sugar, salt, seeds, rice, sesame, monosodium, coffee, seasoning powder, etc.


 Economic 3 Head Linear Scale for Weighing Sesame, Seasoning Powder, Salt, Rice Packing

Features

1. New highly integrated modular control system.

2. Automatic amplitude adjustment function, more convenient to debug.

3. Can weigh a variety of different materials at the same time to achieve mixed material packaging.

4. According to the production situation, parameters can be directly modified in operation, which is easy to operate.

5. Adopts the feeding system of the stepless vibration machine, so that the material is more even and the weighing range is larger.




Mechanical Character

1. Machine are made of stainless steel, clean and sanitary.

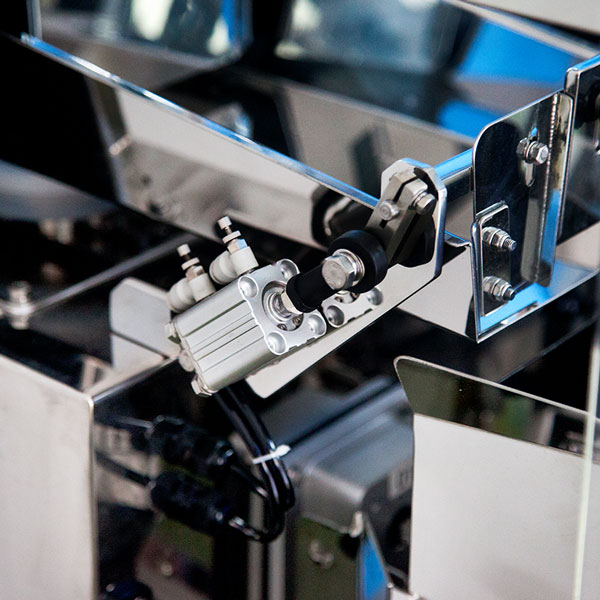

2. The discharge end of the vibration pan is equipped with pneumatic gate, which can realize precise feeding with small flow and effectively improve the weighing accuracy.

3. The parts in contact with the materials (stopper, discharge funnel,vibrator pan, weighing hopper , etc.) can be disassembled quickly and cleaned conveniently.

Technical Specification

ModelJW-AX3
Identify CodeAX3-2-1
Weighing Range50-4000g
AccuracyX(1)
Max Speed30P/M
Hopper Volume6L
Parameters Press No.100
Max Products Mixed3
Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement220V/500W/50/60HZ/3A
Packing Dimension(mm)1200(L)X1050(W)X1050(H)
Gross Weight180kg

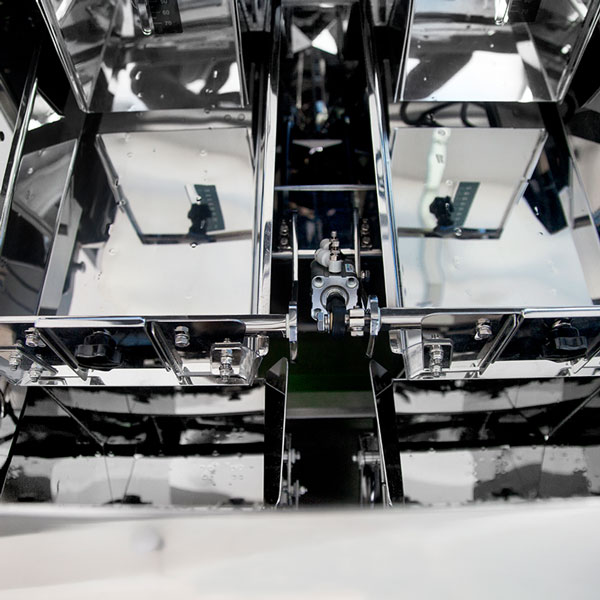

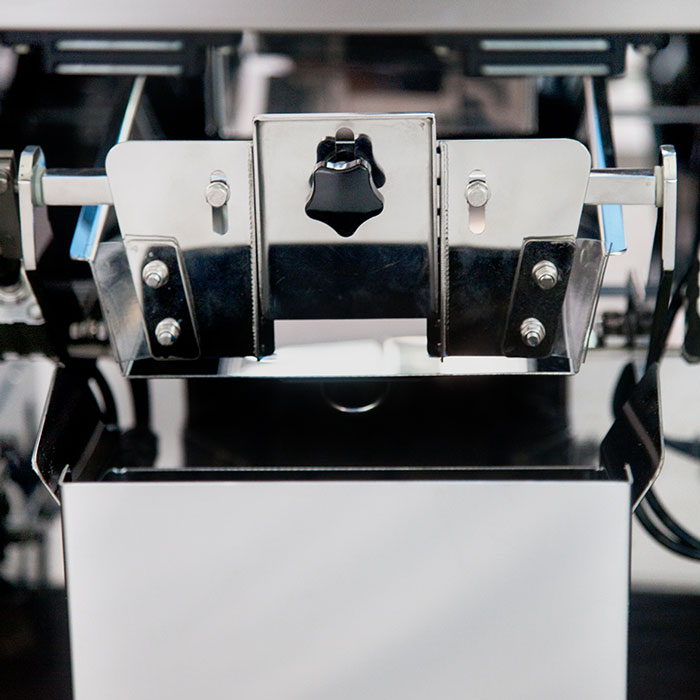

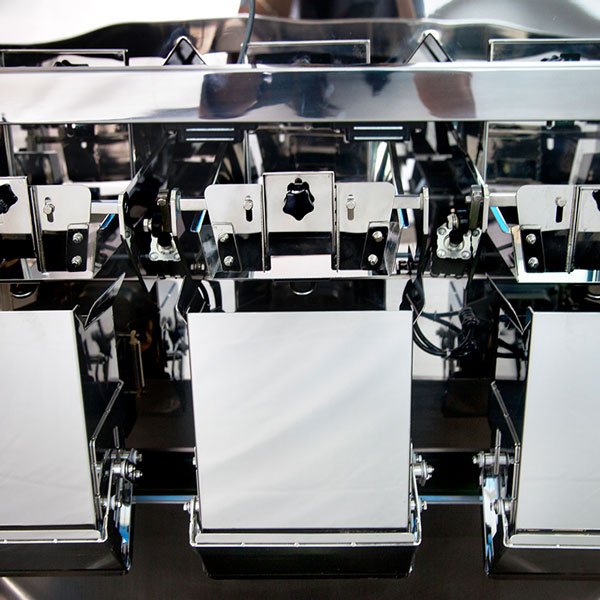

Product Details
