Application

2nd G Single head belt weigher is suitable for brown sugar, industrial salt and other materials with slight viscosity, as well as fresh corn kernels, cauliflower,onion slices and other block, diced, stem and other vegetable products.

Single head belt weigher

Features

1. Grand new modular control system.

2. Parameter can be freely adjusted according to production.

3. Adopt the stepless feeding mode to control the flow of materials in real time to ensure accurate weighing.


Mechanical character

1. The whole machine is made of stainless steel food grade materials to ensure food hygiene and safety.

2. Custom food grade conveyor belts to meet different application needs of different materials.

3. Easy-to-remove structure for easy maintenance and cleaning.

4. Customized special load cell to improve weighing accuracy.

5. Equipped with independent gates, automatically realize the opening and closing of the gate according to the signal feedback.

6. Material contact parts can be quickly disassembled.


Technical specification

ModelJW-AX1
Identify CodeXM1-2-2
Weighing Range500-12000g
AccuracyX(1)
Max Speed8P/M
Hopper Volume15L
Parameters Press No.100
Max Products Mixed1
Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement220V/250W/50/60Hz/1.2A

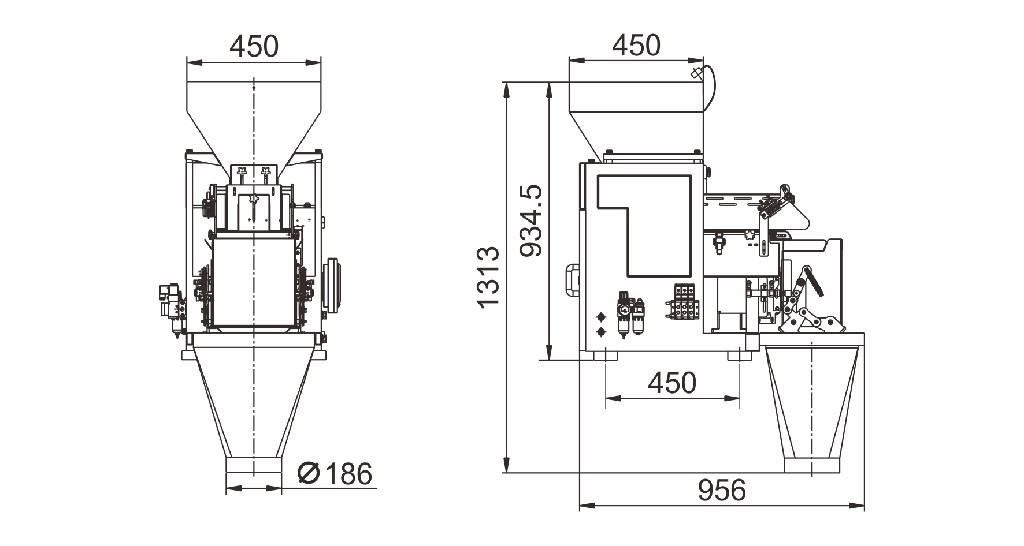

Packing Dimension(mm)1150(L)x700(W)x1090(H)
Gross Weight200kg

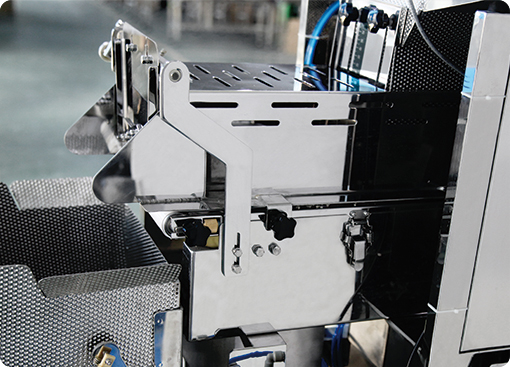

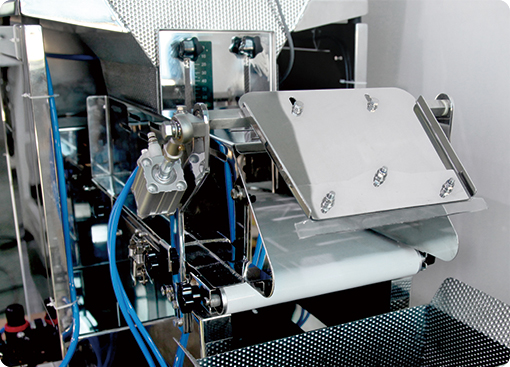

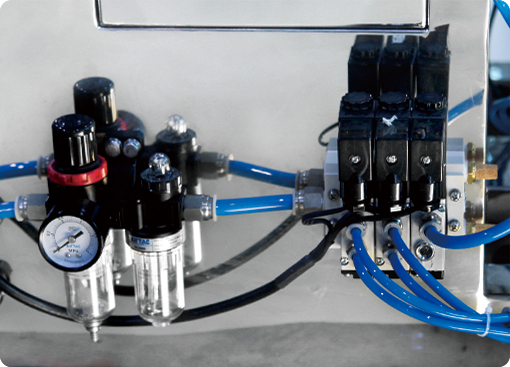

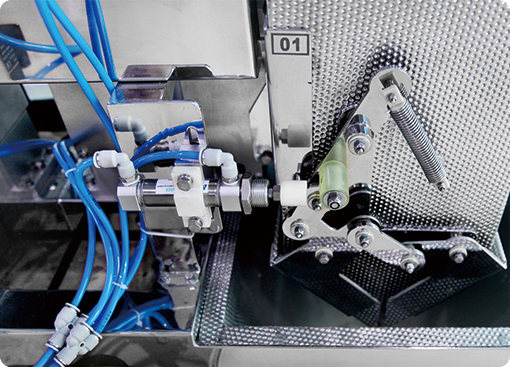

Product Details
