Application

4th G three layers 16 multi head weigher is suitable for weighing various granular, flaky, round and irregular materials, hardware, etc. Get unparalleled speed, accuracy and efficiency in multi head weigher maintaining the highest level of quality and reliability. Choose your application from the widest range of weighing solutions.

application of food multi head weigher

Features

1. Special load cell with high precision and high standard.

2. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.

3. Intelligent fault alarm, convenient for maintenance.

4. High speed staggered discharging function, effectively prevent blocking materials.

5. New highly integrated modular design, using CAN bus technology.

6. Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.

Mechanical character

The kenwei multi head weigher can improve your product packaging line in the following ways:

1. The main vibrating pan can be used for two kinds of mixed materials.

2. With independent main vibrator, respectively control the thickness of different materials.

3. The new memory bucket to make weighing material storage,increase the combined probability and effectively improve the accuracy.

4. Machine case and middle seat integral welding greatly enhance

the strength of the machine, makes the hopper shorter stable time.


Technical specification

ModelJW-A16
Identify CodeA16-4-2
Weighing Range10-1000g
AccuracyX(0.5)
Max Speed120x2P/M
Hopper Volume1.6L
Control Panel10.1”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/2300W/50/60Hz/11A

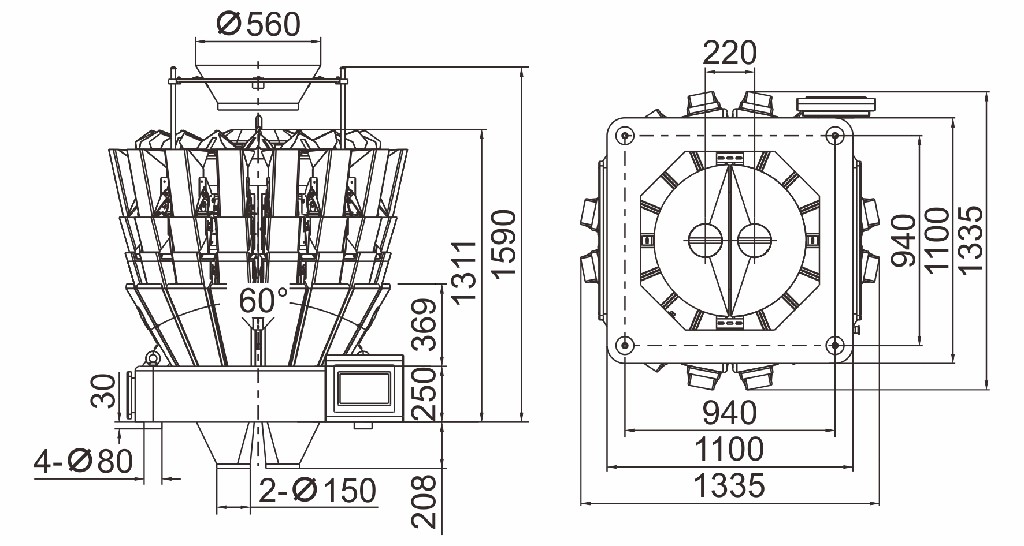

Packing Dimension(mm)1860(L)x1200(W)x1540(H)
Gross Weight650kg


Product Details
