Kenwei multihead weigher packaging machine with 10 head weigher for snacks food

Application

Standard multihead weigher is suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts,raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.

1G Standard Multihead Weigher

Features

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures and support multi-segment weight calibration

3. No products auto pause function can improve weighing stability and accuracy

4. Linear amplitude can be adjusted independently in the running

5. Many languages available for global markets.

6. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation


Mechanical Character

1.1.6L/2.5L hopper, suitable for all kinds of common standard materials, can be used widely

2.Mold making process and uniform design standards contribute to better interchangeability for spare parts

3.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter

4.Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy

5.Can choose patented no-spring hopper ,cost-effective.


Technical Specification

ModelJW-A10JW-A12JW-A14JW-AM10JW-AM14JW-A10JW-A14
Identify CodeA10-1-1A12-1-1A14-1-1AM10-1-1AM14-1-1A10-1-3A14-1-3
Weighing Range10-1000g10-1500g10-1500g100-3000g100-3000g10-1000g10-1500g
AccuracyX(0.5)X(0.5)X(0.5)X(1)X(1)X(0.5)X(0.5)
Max Speed65P/M100P/M120P/M50P/M80P/M60P/M100P/M
Hopper Volume1.6/2.5L5L1.6L(No-spring)
Control Panel7''Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V / 1000W / 50/60Hz / 10A220V / 1200W / 50/60Hz / 10A220V / 1500W / 50 / 60Hz / 10A220V / 1500W / 50/60HZ/10A220V / 1500W / 50/60HZ /12A220V / 1000W /50/60Hz / 10A220V / 1500W / 50/60Hz / 12A
Packing Dimension(mm)1620(L)x1100(W)x1110(H)1700(L)x1100(W)x1130(H)1700(L) x1100(W)x1265(H)1950(L) X1280(W)X1690(H)2195(L) X1380(W)X1810(H)1620(L) x1100(W)x1110(H)1700(L) x1100(W)x1265(H)
Gross Weight380kg430kg490kg600kg750kg380kg490kg

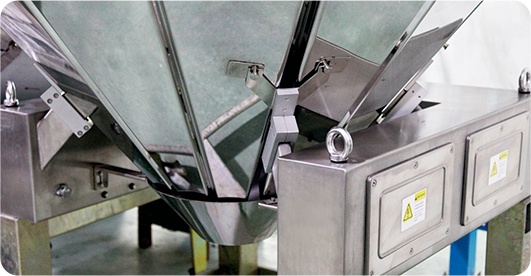

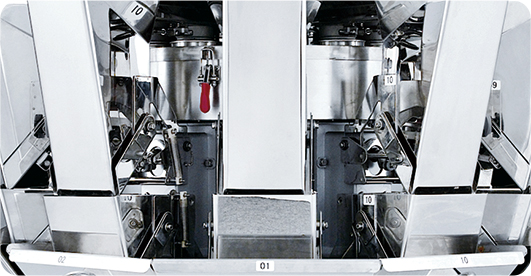

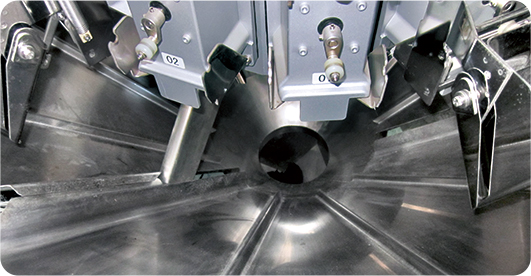

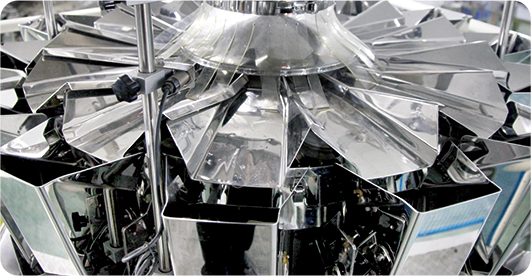

Product Details
