Electric Automatic Weighing Packaging Machine with 10 Head Multihead Weigher for Potato Chips


3rd G standard multihead weigher's suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips,dumplings and other granule, sheet, strip, round shape material.

3rd G Standard Multihead Weigher


1. Special load cell with high precision and high standard.

2. Intelligent fault alarm, convenient maintenance.

3. High speed staggered discharging function, effectively prevent blocking materials.

4. With high integrated modular design makes mechanical and electronic components easy to install and maintenance.

5. Modbus industry standard communication protocol, realize the interface combination of multihead weigher and packaging machine.

Mechanical Character

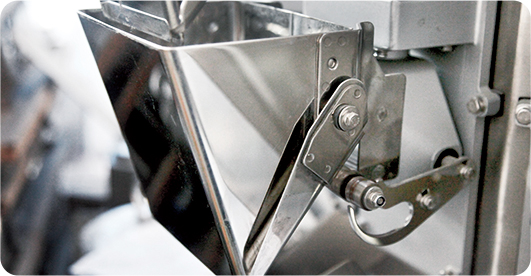

1. High speed hoppers without springs to avoid the broken spring falling into packages.

2. New springless actuator design makes weighing more stable and fast.

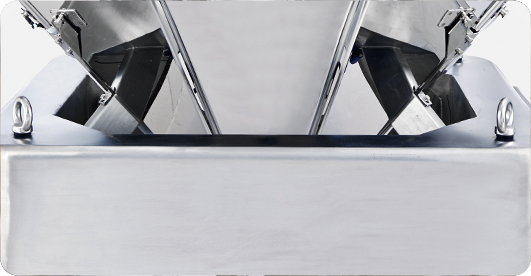

3. Machine case and middle seat integral welding greatly enhance the strength of the machine, makes the hopper shorter stable time.

Technical Specification




Identify CodeA10-3-2A14-3-2
Weighing Range10-1000g10-1500g
Max Speed65P/M120P/M
Hopper Volume1.6L/2.0L
Control Panel10.1”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1000W/50/60Hz/10A220V/1500W/50/60Hz/10A

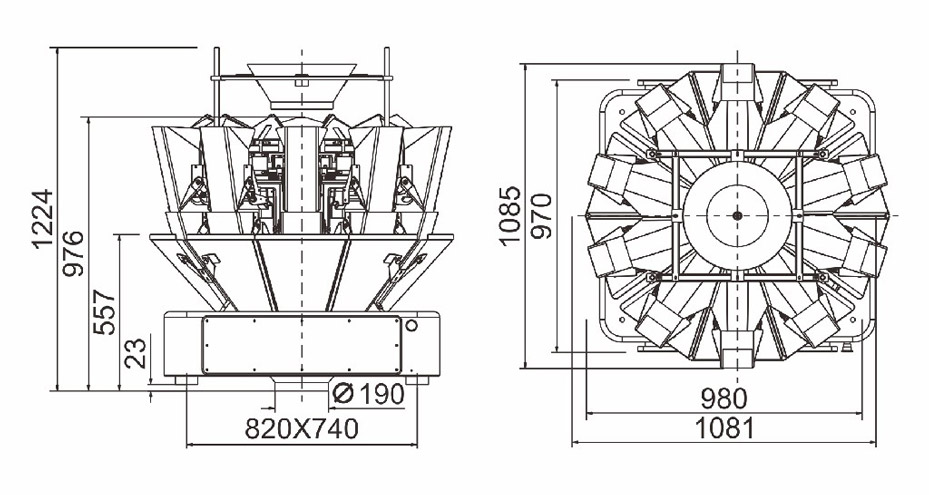

Packing Dimension(mm)1620(L)x1080(W)x1100(H)1760(L)x1190(W)x1390(H)
Gross Weight400kg500kg

Product Details
