Standard 20 heads multihead weigher is suitable for weighing a single material with high-speed or various mixing products, such as oatmeal, mixing nuts etc.

High Speed Mixing Mode Standard 20 Head Combination Scale for Mixing Nuts


1. When weighing one product, high speed mode can be optional.

2. The weight of the mixing can be automatically compensated by the last products.

3. Special load cell with high precision and high standard.

4. Intelligent alarm diagnosis.

5. High speed stagger dump function.

6. New Modular and CAN bus technology, more efficient and stable.

7. Modbus Industry communication protocol.

Mechanical Character

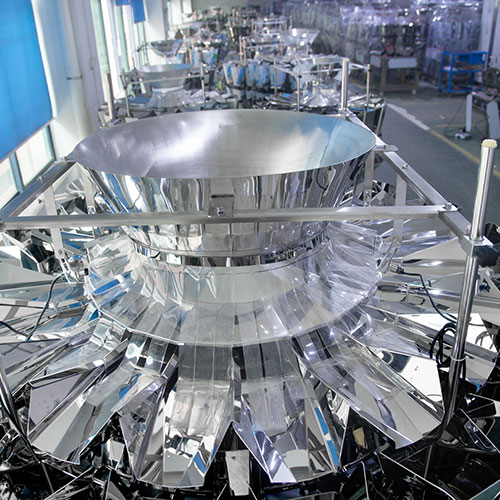

1. Upper storage funnel is divided to weight two different products.

2. Separate main vibrator, control the thickness of product independently.

3. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.

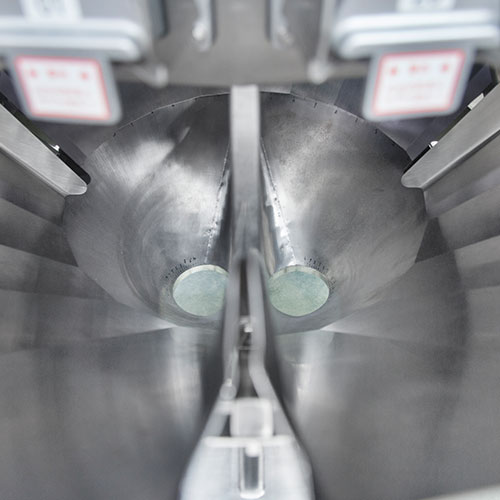

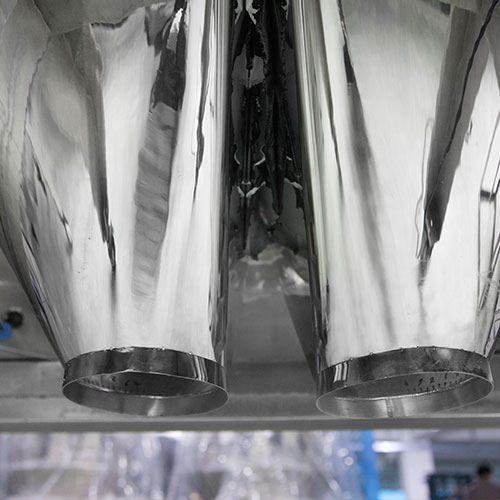

4. Machine frame, discharge chute with compatible design, single discharge chute gate can change to double with twin packaging machine when just one kind of product.

5. Uniform design standards, and mould processing, contribute to better interchangeability for spare parts.

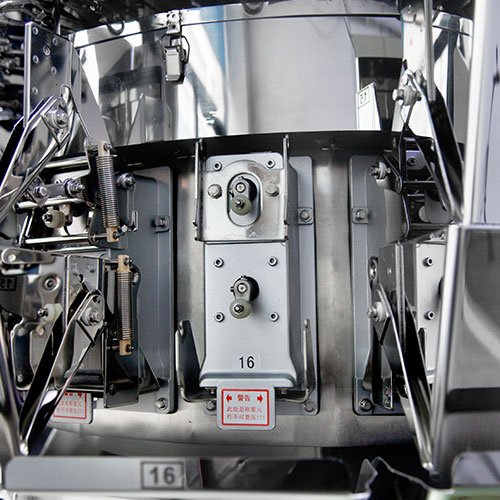

6. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.

7. Option: two outputs model.

Technical Specification

Identify CodeA20-2-1(O type)A20-2-1(O type)A20-2-3(8 type)A20-2-2(O type)A20-2-4(8 type)
Weighing Range20-2000g(Mixing Mode)/10-1000g(Single Mode)10-1000g
Max Speed65P/M(Mixing Mode)/120P/M(Single Mode)2x65P/M(Twin Packing Machine Mode)
Hopper Volume1.6L2.5L1.6L/2.5L
Control Panel10.1”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/2000W/50/60Hz/16A220V/2000W/50/60Hz/16A220V/2000W/50/60Hz/16A220V/2000W/50/60Hz/16A220V/2000W/50/60Hz/16A
Packing Dimension(mm)1700(L)x1450(W)x1450(H)1920(L)x1650(W)x1620(H)1880(L)x1600(W)x1240(H)1950(L)x1650(W)x1620(H)1880(L)x1600(W)x1240(H)
Gross Weight850kg

Product Details
