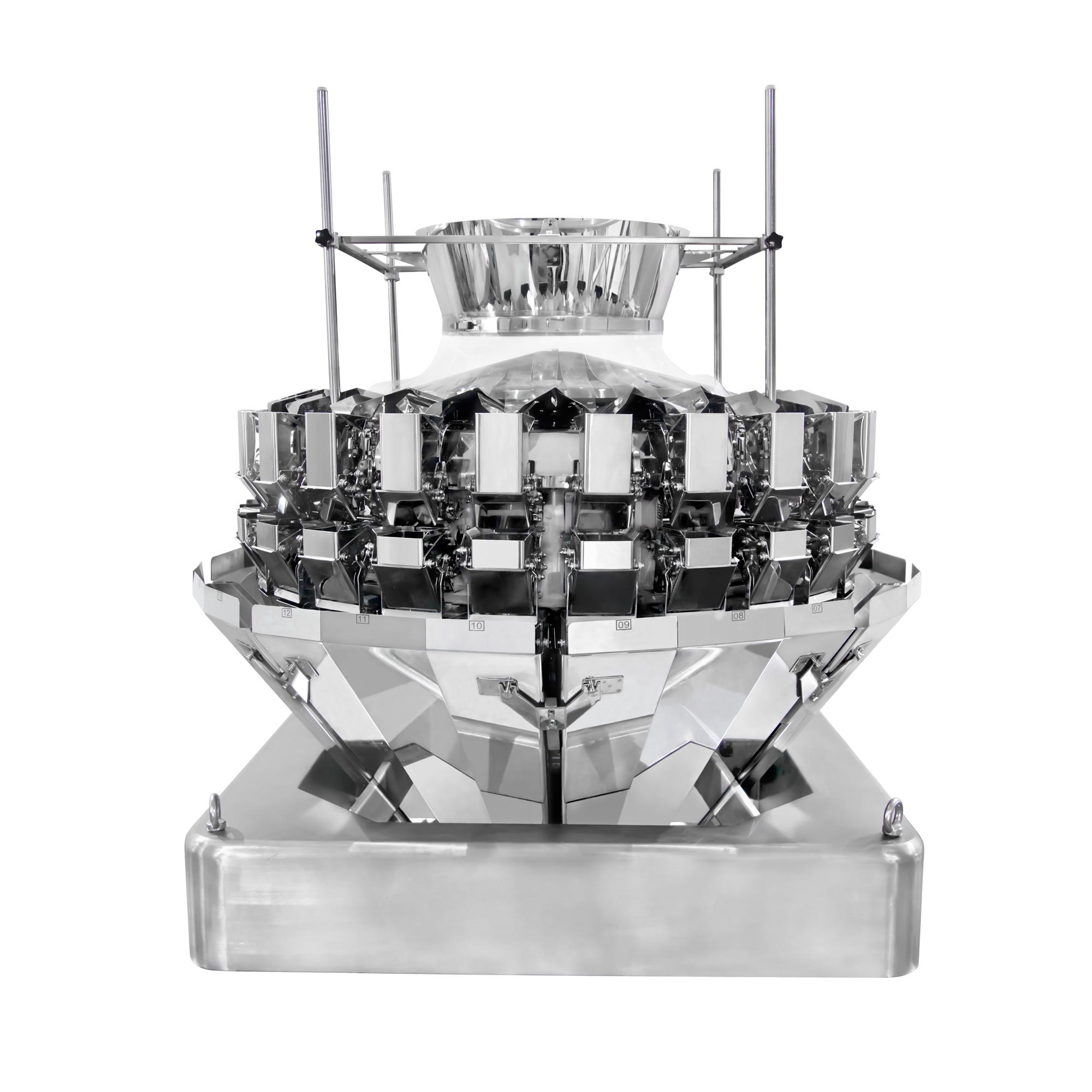

24 heads mixing multihead weigher automatic weighing packing machine for granules, seeds, tea

Application

4th G three layers 24 heads weigher is suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips, dumplings and other granule, sheet, strip, round shape material.

Auto Weighing Packing Machine

Features

1. Special load cell with high precision and high standard.

2. Intelligent fault alarm, convenience for maintenance.

3. High speed staggered discharging function, effectively prevent blocking materials.

4. Automatic compensation in mixing weighing mode.

5. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.


Mechanical character

1. Universal hopper weighing unit enhances the interchangeability of parts of the whole machine.

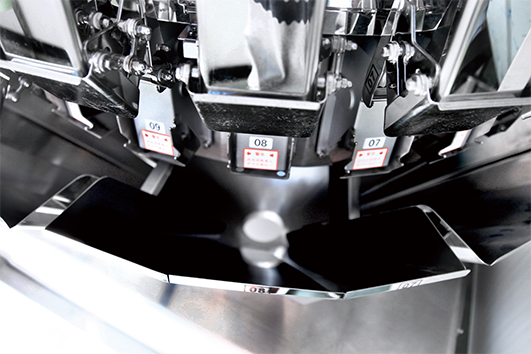

2. It has a memory bucket to realize the temporary storage of weighing materials, increase the combination probability, and effectively improve the combination precision.

3. Separate the main vibration plate, the single machine can be used for more than 2 kinds (Max.up to 6 kinds) of mixed material formula application.

4. The independent main vibration machine is used to control the feeding thickness of different materials.

5. The chassis and middle seat integrated welding greatly enhances the strength of the machine, making the hopper stable time shorter.

Technical specification

ModelJW-A24
Identify CodeA24-4-1
Weighing Range12-1000g
AccuracyX(0.5)
Max Speed60x6P/M
Hopper Volume0.5L
Control Panel10.1”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement110/220V/2800W/50/60Hz/13A

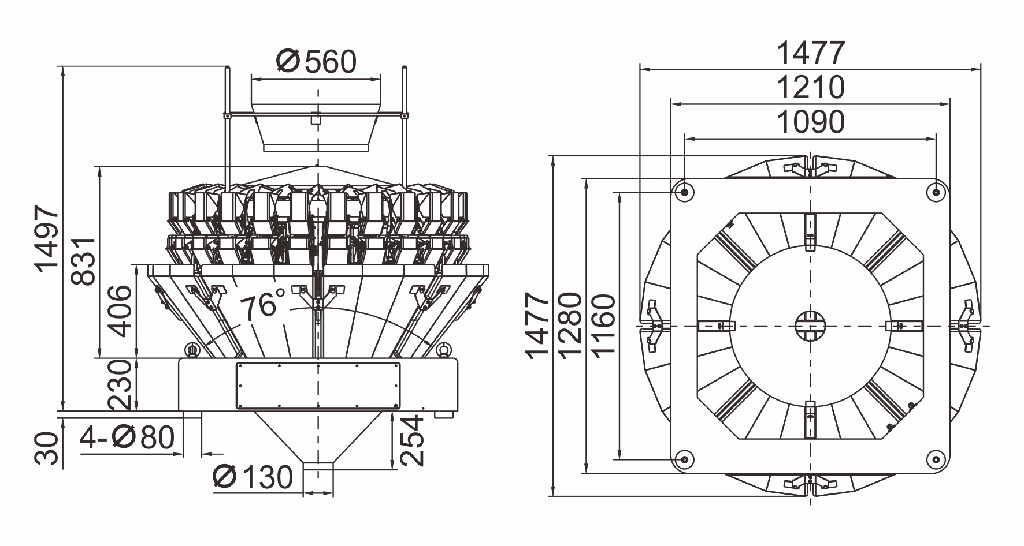

Packing Dimension(mm)2100(L)x1480(W)x1130(H)
Gross Weight650kg


Product Details
