1. Weighing range 5-240g;
2. 32 head weigher with high combinations,flexible configuration, strong adaptability, high precision;
3. The main material automatically compensate for other formula weighing accuracy error, which ensure the accuracy of the total weight;
4. It can be flexibly setup mixing formula to less than 7 kinds of material, or increase more than 7 kinds of material;
5. It can be used for only one material, as a high-speed machine, or weighing for bigger target weight.
Optional equipment is the same as One Multihead Weigher Mixing Weighing System

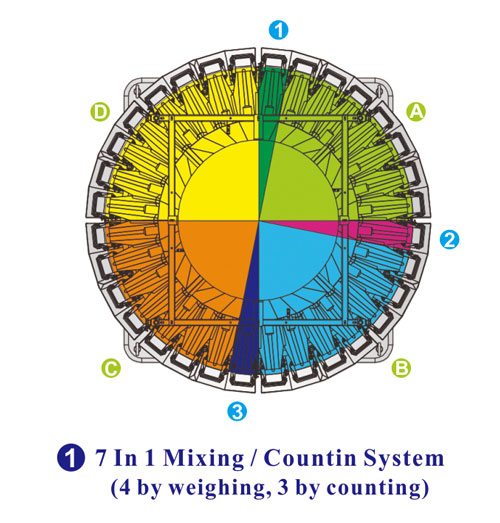

The distributed hoppers of 32 head weigher for the 4 material are 7hoppers (±2g), 7hoppers (±2g), 7hoppers (±2g) and 8hoppers (±1.5g).The main material is distributed 8hoppers as the main material automatically compensate for other formula weighing accuracy error, which ensure accuracy of the total weight within ±1.5g; Other three kinds of materials are distributed 7 hoppers with accuracy of ± 2g; Formula weighing accuracy control is well.

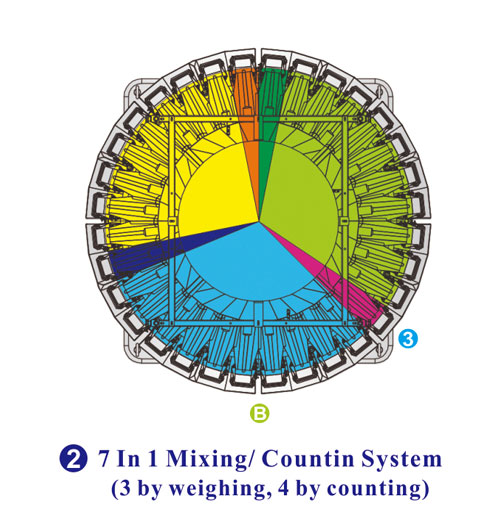

The distributed hoppers of 32 head weigher for the 3 material counting pieces are 1 hopper (±0), 1 hopper (±0) and 1 hopper (±0). Each of the material is distributed to one hopper and fed by counting vibration rotary feeder in high precision (the weight accuracy is not considered)
The distributed hoppers of 32 head weigher for the 3 material are 10 hoppers (±1g), 10 hoppers (±1g), 8 hoppers (±1.5g).The main material is distributed 10 hoppers as the main material automatically compensate for other formula weighing accuracy error, which ensure accuracy of the total weight within ±1g; Other 2kinds of materials are distributed 10 hoppers with accuracy ±1g and 8 hoppers with accuracy±1.5g Formula weighing accuracy control is well.
The distributed hoppers of 32 head weigher for the 4 material counting pieces are 1 hopper (±0), 1 hopper (±0) ,1 hopper (±0) and 1 hopper (±0). Each of the material is distributed to one hopper and fed by counting vibration rotary feeder in high precision (the weight accuracy is not considered)

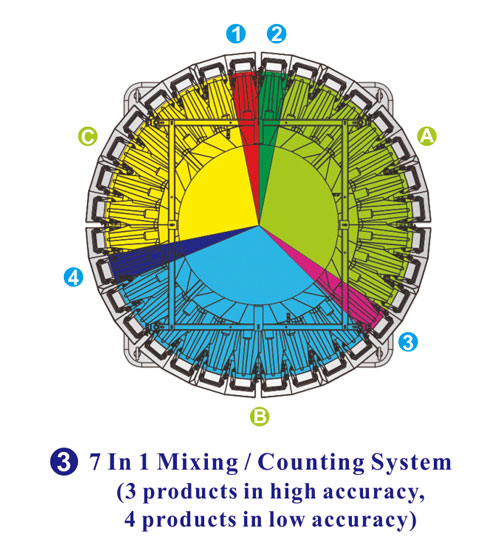

The distributed hoppers of 32 head weigher for the 3 material high accuracy mixing weighing are 10 hoppers (±1g), 10 hoppers (±1g), 8 hoppers (±1.5g).The main material is distributed 10 hoppers as the main material automatically compensate for other formula weighing accuracy error, which ensure accuracy of the total weight within ±1g; Other 2kinds of materials are distributed 10 hoppers with accuracy ±1g and 8 hoppers with accuracy±1.5g Formula weighing accuracy control is well.
