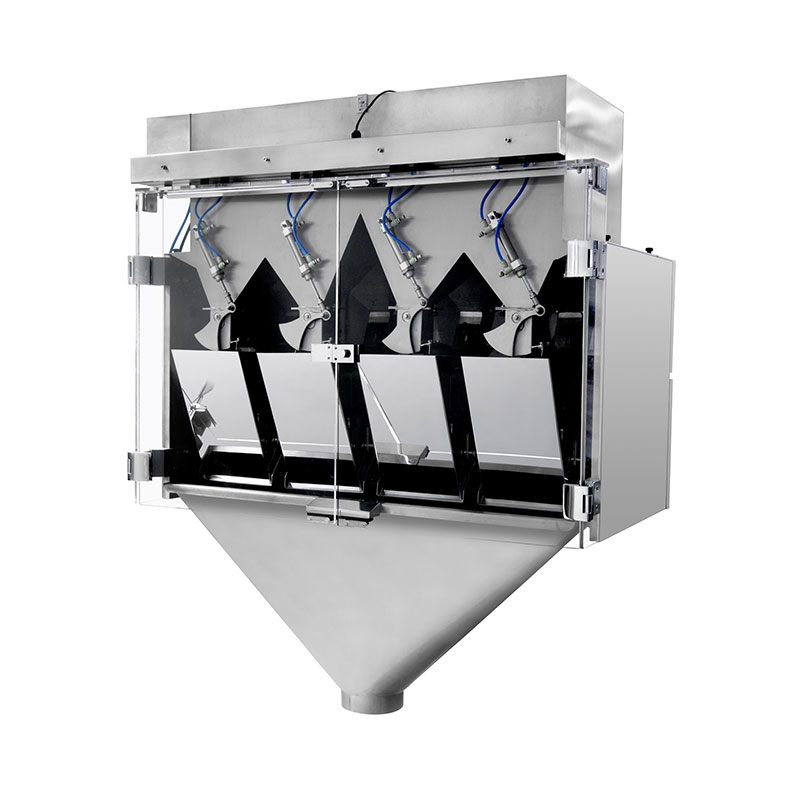

4 Head Linear Weigher Machine for Weighing Sesame, Seasoning Powder, Salt, Granules

Application

4 Heads high speed linear weigher is suitable for weighing small granules such as sugar, salt, seeds, rice, sesame, monosodium, coffee, seasoning powder, etc.

4 Head Linear Weigher Machine for Weighing Sesame, Seasoning Powder, Salt, Granules

Features

1. New highly integrated modular control system.

2. Automatic amplitude adjustment function, more convenient to debug.

3. Can weigh a variety of different materials at the same time to achieve mixed material packaging.

4. According to the production situation, parameters can be directly modified in operation, which is easy to operate.

5. Adopts the feeding system of the stepless vibration machine, so that the material is more even and the weighing range is larger.

Mechanical Character

1. Machine are made of stainless steel, clean and sanitary.

2. Free fall fast feeding can save more time than normal vibration feeding.

3. Precision vibrator pan to achieve small flow of accurate feeding, effectively improve the weighing accuracy.

4. The parts in contact with the materials (stopper, discharge funnel, vibrator pan, weighing hopper, etc.) can be disassembled quickly and cleaned conveniently.


Technical Specification

ModelJW-AX4
Identify CodeAX4-2-2
Weighing Range200-4000g
AccuracyX(1)
Max Speed60P/M
Hopper Volume6L
Parameters Press No.100
Max Products Mixed4

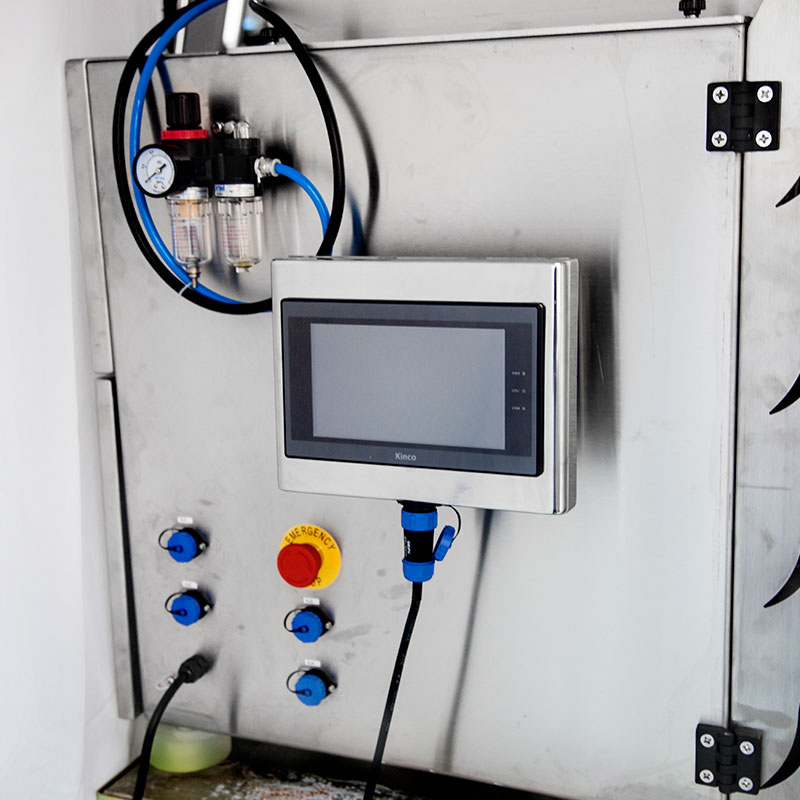

Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement220V/500W/50/60HZ/3A

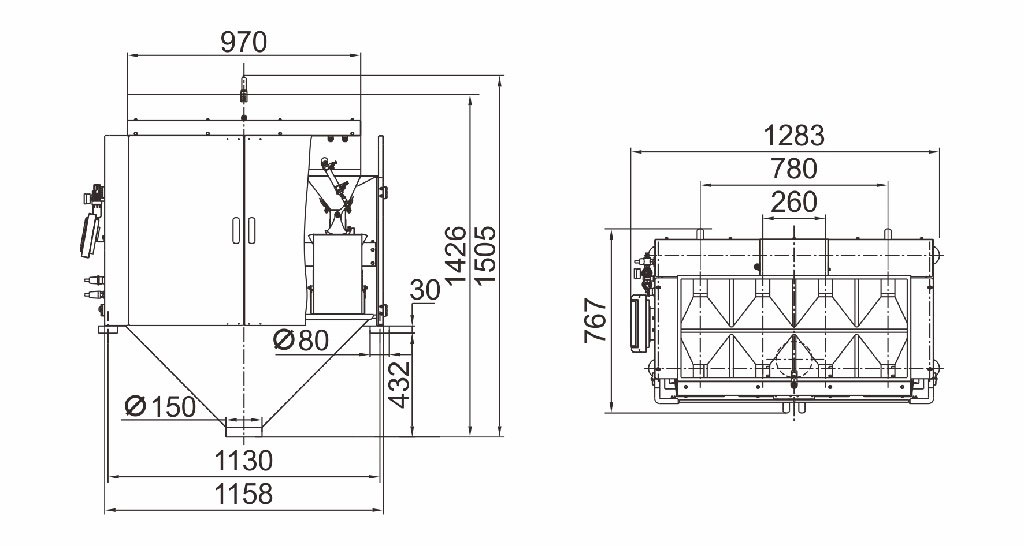

Packing Dimension(mm)1400(L)X1200(W)X1190(H)
Gross Weight240kg


Product Details
