Feeding more uniform 10 head multi head weigher for stick shaped products max 200mm length

Application

Weigher for stick shaped products is suitable for weighing stick shaped products, such as sausage, salty sticks, chopsticks, pencil, etc. max 200mm length.

Weigher for stick shaped products

Features

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures, support multi-segment weight calibration.

3. No products auto pause function can improve weighing stability and accuracy.

4. Linear amplitude can be adjusted independently, can make the feeding more uniform.

5. 15 languages available for global markets.

6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.


Mechanical character

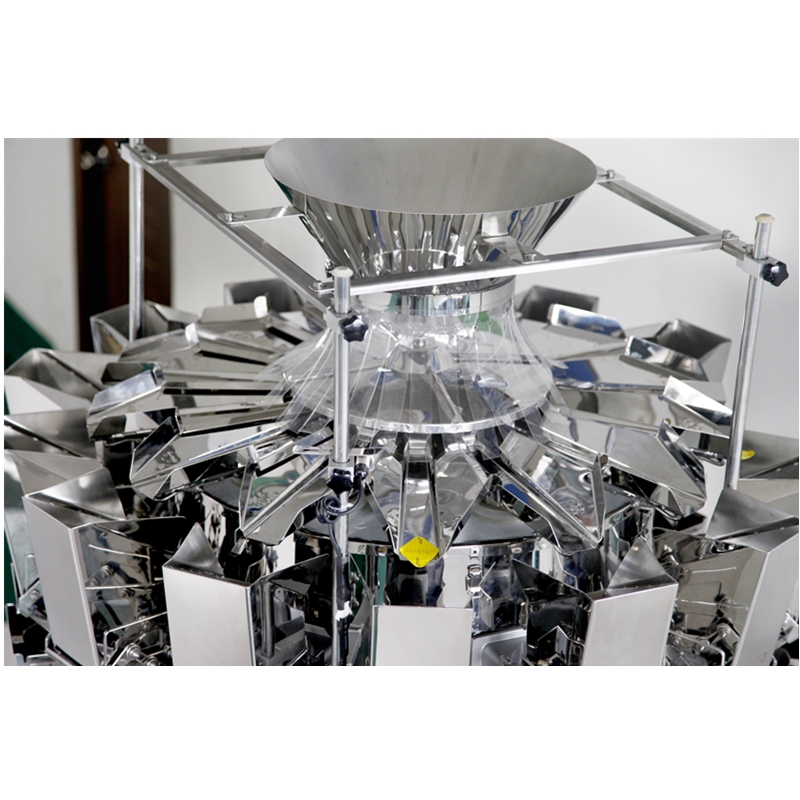

1. Special rotary top cone dispense products evenly to each linear feeder pan.

2. Special linear feeder pan to make sure of feeding process.

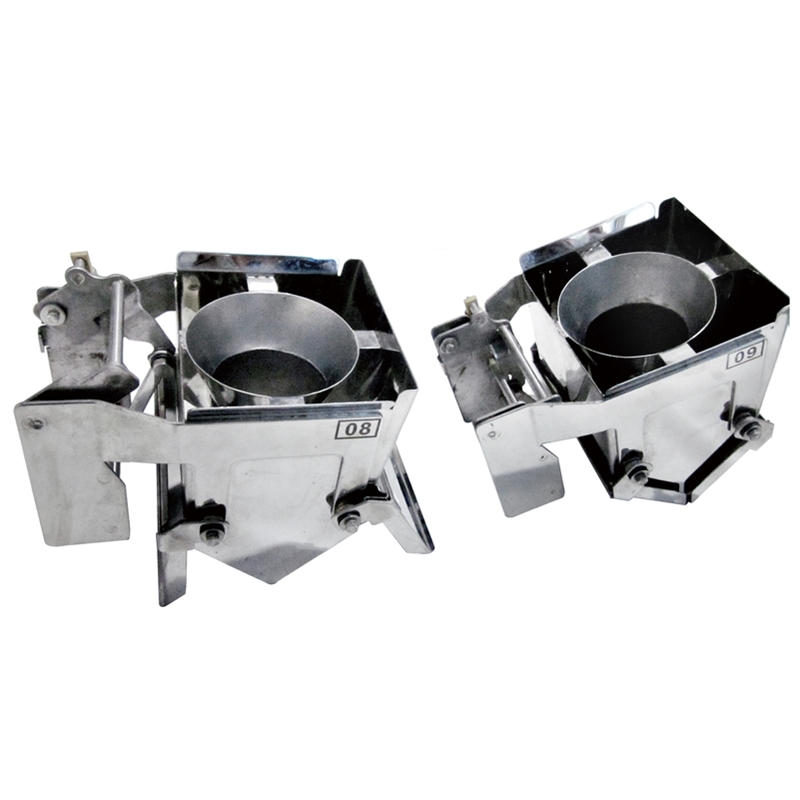

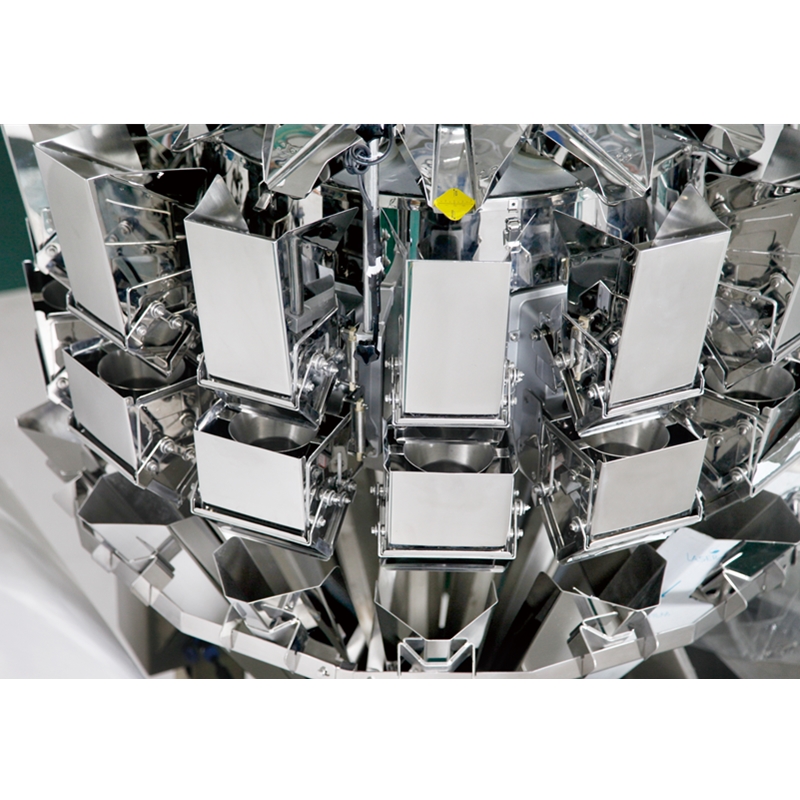

3. Special hopper design to keep the material in a vertical state.

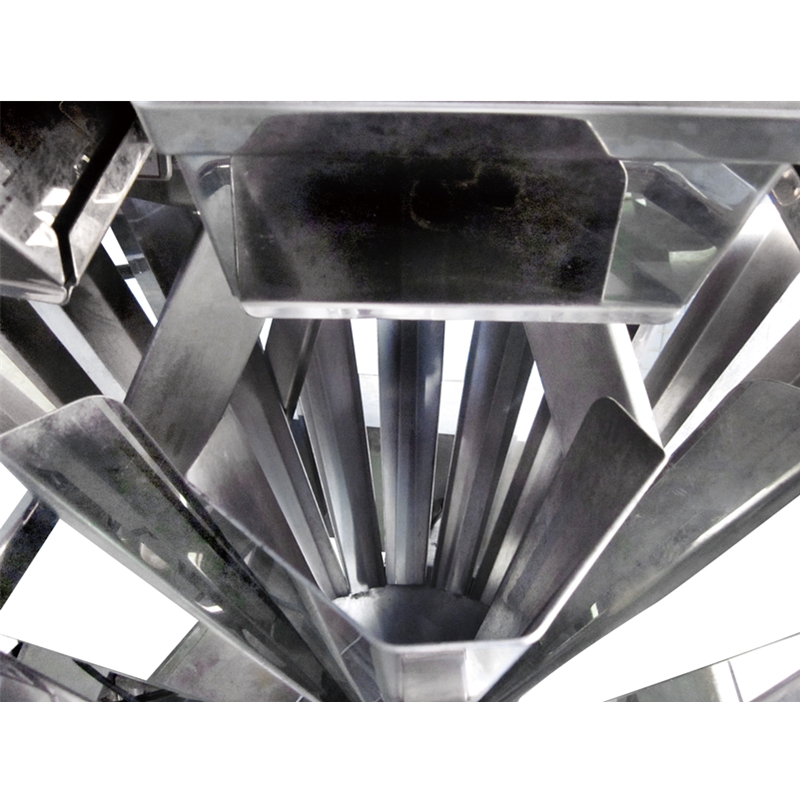

4. Independent discharge chute can make sure that material discharge into packaging machine vertically.

5. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Technical specification

ModelJW-AS14JW-A10JW-A14JW-AM14
Identify CodeAS14-1-9A10-1-9A14-1-9AM14-1-9
Weighing Range3-200g10-1000g10-1500g10-3000g
AccuracyX(0.5)X(0.5)X(0.5)X(1)
Max Speed60P/M30P/M60P/M60P/M
Hopper Volume0.5L2.5L2.5L5L
Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1100W/50/60Hz/10A220V/2000W/50/60Hz/12A220V/2000W/50/60Hz/12A220V/2000W/50/60Hz/12A

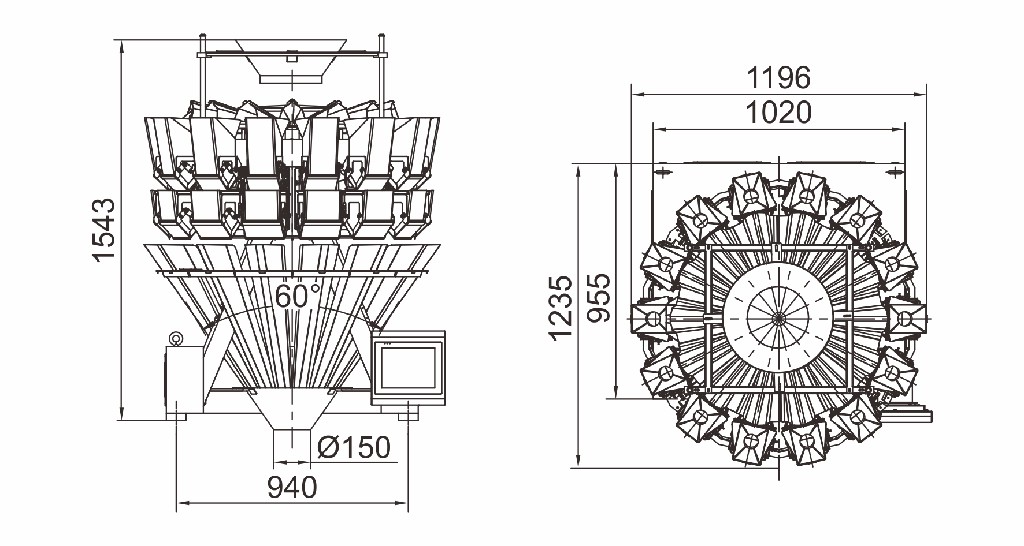

Packing Dimension(mm)1190(L)x970(W)x950(H)1620(L)x1100(W)x1420(H)1750(L)x1130(W)x1420(H)2195(L)x1380(W)x2060(H)
Gross Weight240kg380kg490kg750kg


Product Details
