Manual 12 Heads belt weigher for weighing poor fluidity products as fish,noodles,meat


12 heads manual belt weigher is suitable for weighing large block, strip and stem materials with poor fluidity, such as fish, noodles, shrimp and other aquatic products, meat products, medicinal materials and other materials.

12 heads manual belt weigher


1. Using high-precision, high-standard special load cell.

2. Modular circuit board realizes intelligent multi-sampling stable mode, and the weighing is more accurate.

3. Intelligent fault alarm, convenient maintenance.

4. Concentrated discharge mode to ensure the relative concentration of materials and improve the running speed of the machine.

5. Intelligently customize the number of weighing trays to achieve double standards of weighing and counting.

Mechanical character

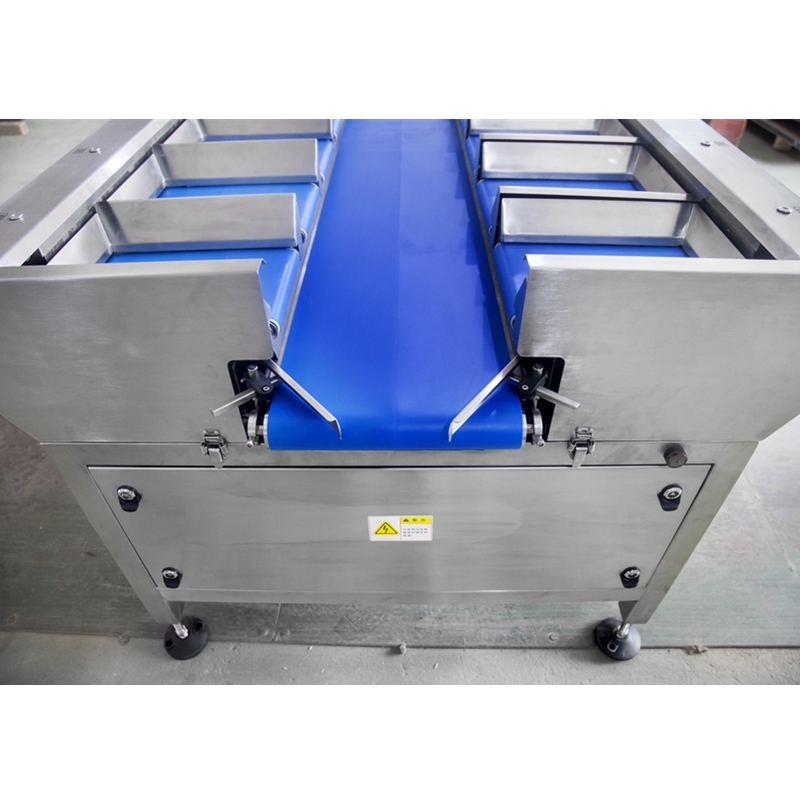

1. Double row linear layout, easy to operate by workshop staff.

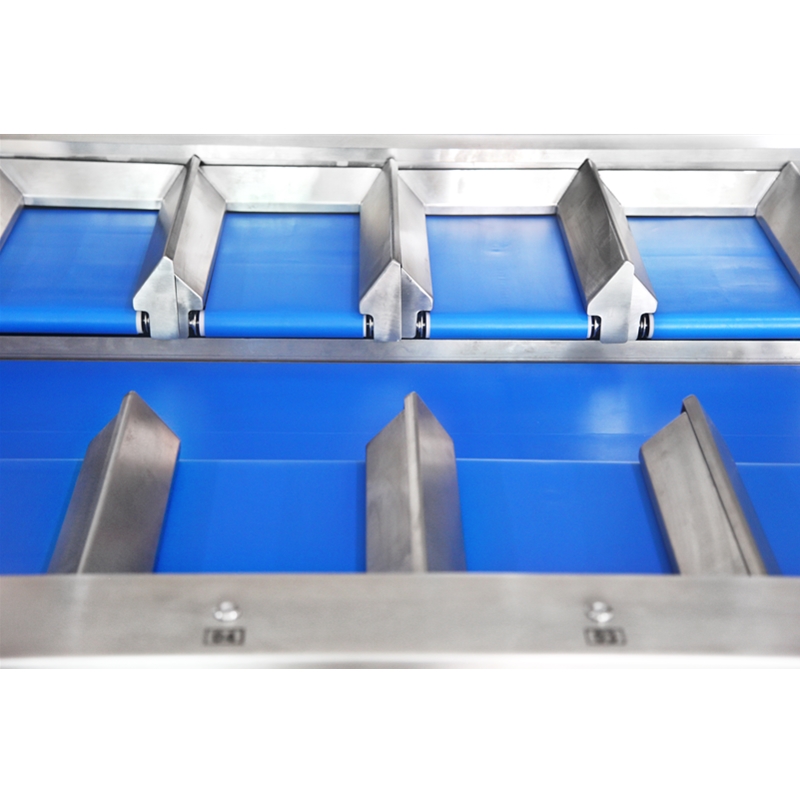

2. Belt-type open weighing tray design structure can effectively solve the feeding of sticky or bulky materials with poor fluidity.

3. Visualize LED signal light, clear the feeding direction and feeding area, and effectively identify the current status of the corresponding tray.

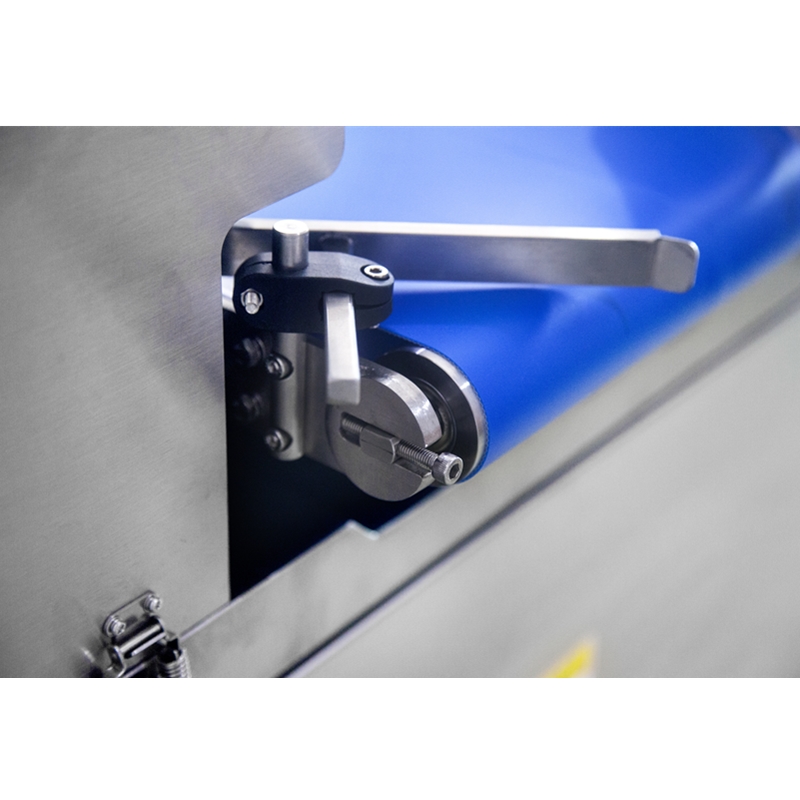

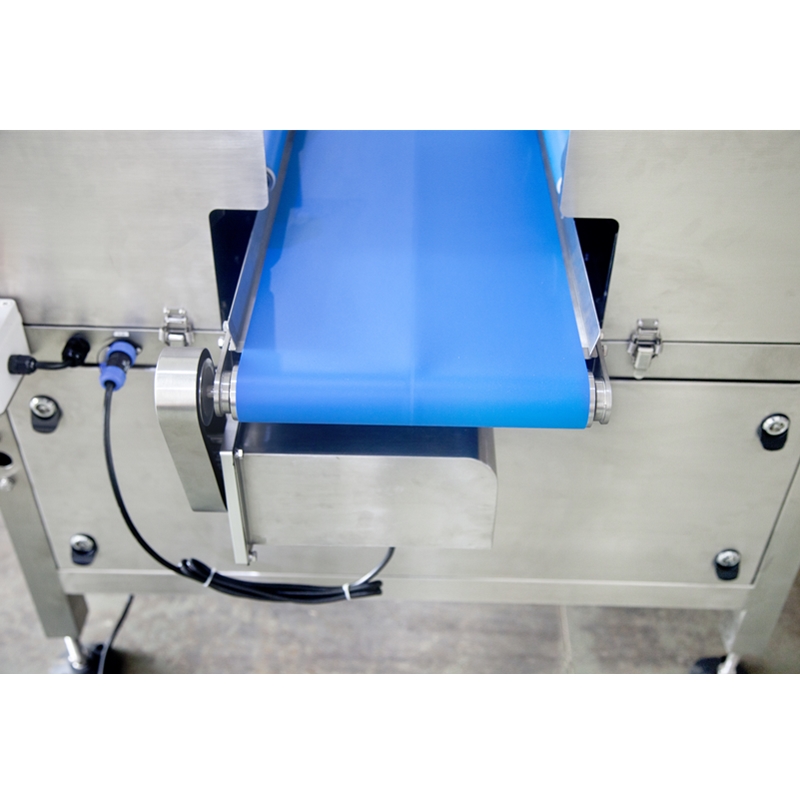

4. Easy detachable conveyor belt, easy to clean.

5. HMI interface to facilitate self-learning and exchange of information.

Technical specification

Identify CodeA12-2-5A14-2-5
Weighing Range10-6000g10-6000g
Max Speed30P/M25P/M
Protection ClassIP65
Weighing Belt Dimension300(L)x180(W)
Control Panel10.1”Touch Screen
Driving SystemStep Motor
Power Requirement220V/800W/50/60Hz/3.6A
Packing Dimension(mm)2200(L)x1200(W)x1160(H)2560(L)x1200(W)x1160(H)
Gross Weight370kg450kg

Product Details
