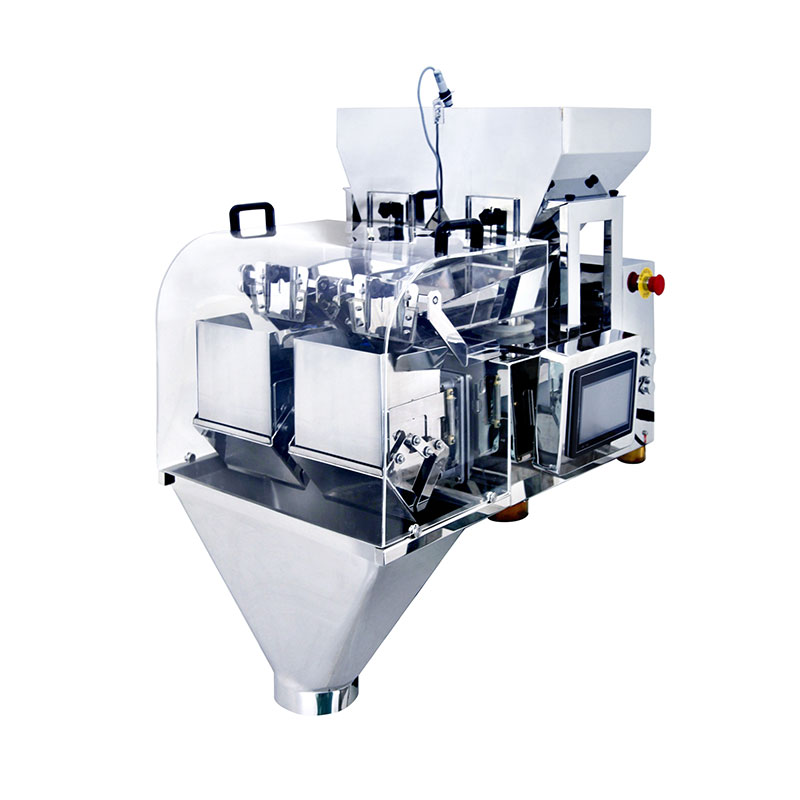

Electronic Linear Weigher for Weighing and Filling Milk Powder, Seasoning Powder, Salt


Standard Linear Weigher is suitable for weighing slice, roll or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder,coffee and season powder, etc.



1. Grand new modular control system.

2. Amplitude can be adjusted automatically.

3. Make mix different products weighing at one discharge.

4. Parameter can be freely adjusted according to production.

5. Adopt stepless vibrating feeding system to make products flow more fluently.

Mechanical Character

1. Sanitation with 304S S construction.

2. Rigid design for vibrator and feed pan make feeding strictly correct.

3. Quick Release design for all the contact parts

Technical Specification

Identify CodeX1-2-1X2-2-1XM2-2-1X4-2-1XS4-2-1
Weighing Range20-1000g20-3000g1000-12000g20-2000g2-300g
Max Speed10-15P/M30P/M25P/M55P/M70P/M
Hopper Volume4.5L4.5L15L3L0.5L
Parameters Press No.100100100100100
Max Products Mixed12244
Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement220V/700W/50/60HZ/5A220V/1200W/50/60HZ/6A220V/1200W/50/60HZ/6A220V/1200W/50/60HZ/6A220V/1200W/50/60HZ/6A
Packing Dimension(mm)860(L)X570(W)X920(H)920(L)X800(W)X890(H)1215(L)X1160(W)X1020(H)1080(L)X1030(W)X820(H)820(L)X800(W)X700(H)
Gross Weight80Kg130Kg280Kg160Kg135Kg


Product Details
