Kenwei auto advanced multihead weigher packing machine with 10 head weigher for snack food

Application

2nd G advanced multihead weigher is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins,dried fruits, frozen foods, snack foods, hardwares, meatballs, etc.

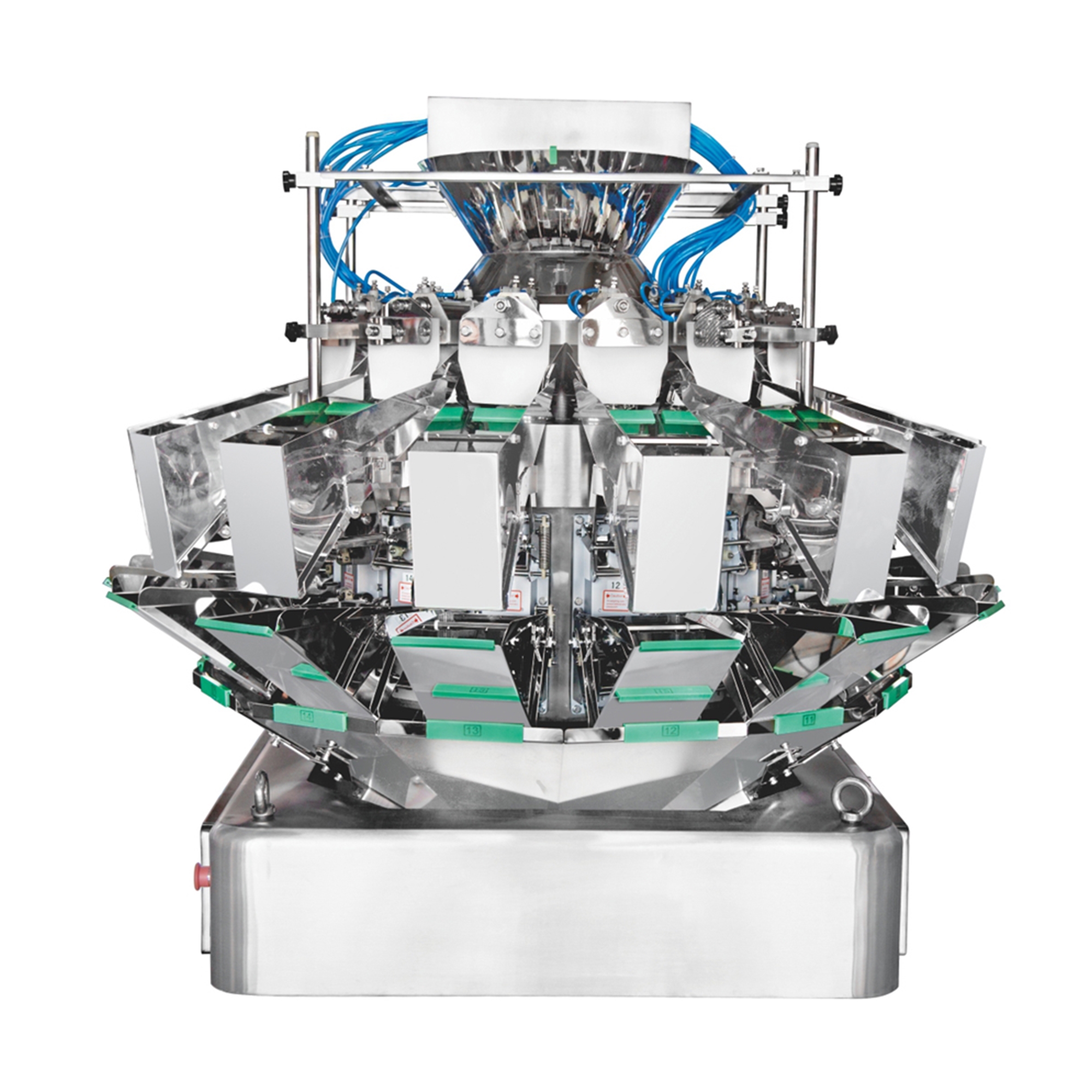

Multihead Weigher Packing Machine

Features

1. Special load cell with high precision and high standard.

2. Intelligent multi-sampling stable mode, higher accuracy.

3. Intelligent alarm diagnosis.

4. High speed stagger dump function.

5. Modular and CAN bus technology, more efficient and stable.

6. Modbus Industry communication protocol.


Mechanical character

1.3L hopper, a wide range application to different size of products.

2.Arc-shaped machine body with large O treatment improves the stability and appearance.

3. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.

4.Uniform design standards, and mould processing, contribute to better interchangeability for spare parts.

5.Integral machine frame and machine cabinet contributes to more stability and higher accuracy.


Technical specification

ModelJW-A10JW-A14
Identify CodeA10-2-1A14-2-1
Weighing Range10-1000g10-1500g
AccuracyX(0.5)X(0.5)
Max Speed65P/M120P/M
Hopper Volume3L
Control Panel10.1”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1500W/50/60Hz/8A220V/1500W/50/60Hz/10A

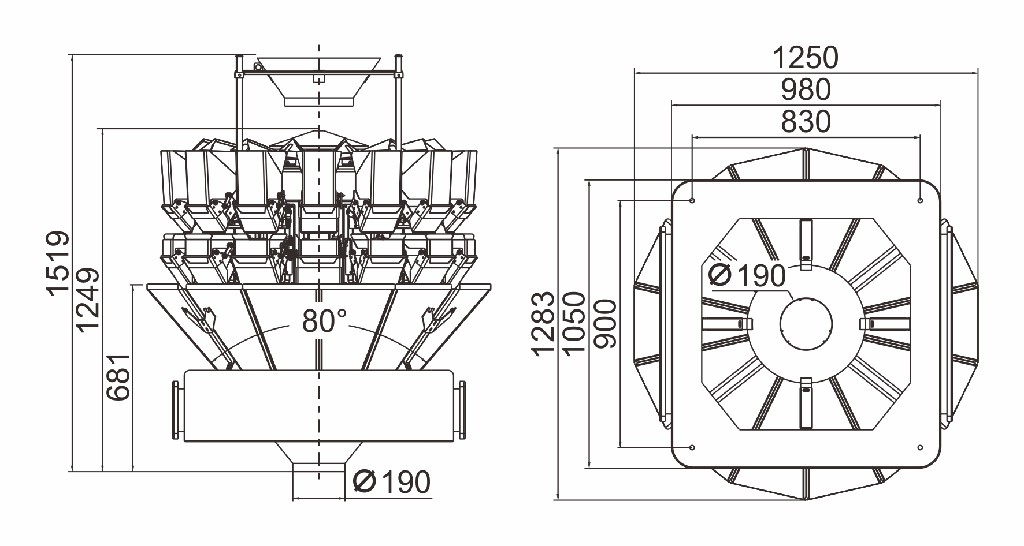

Packing Dimension(mm)1620(L)X1080(W)X1220(H)1700(L)X1200(W)X1300(H)
Gross Weight400kg500kg


Product Details
