Salad weigher is suitable for weighing large volume products such as potatoes, tomatoes, onions, fruits,vegetable and salad with large target weight.
1.Special load cell with high precision and high standard.
2.Program recovery function can reduce operation failures, support multi-segment weight calibration.
3.No products auto pause function can improve weighing stability and accuracy.
4.Linear amplitude can be adjusted independently, can make the feeding more uniform.
5.15 languages available for global markets.

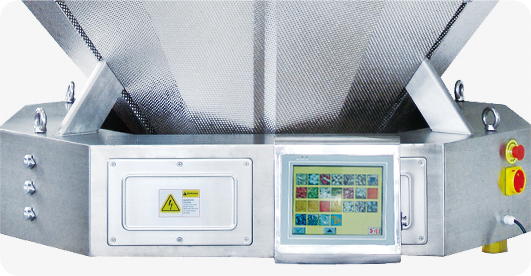

6.100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

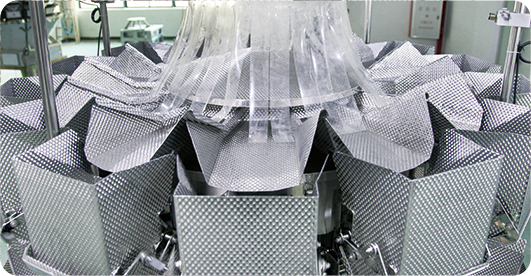

1. Speed adjustable rotary top cone is suitable for different product feeding.
2. Enhanced linear vibrator improves the flowability of material.
3. The declinational special linear vibrator pan, ensure smooth feeding.

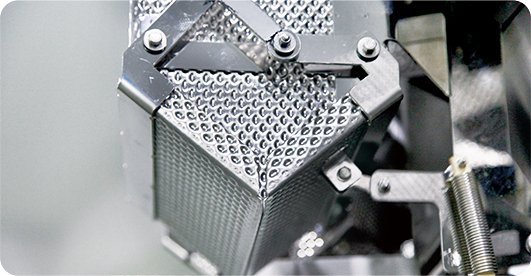

4. 60° dimple discharge chute contributes to less sticky problems.
5. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
Model | JW-AM10 | JW-AM14 |
Identify Code | AM10-1-11 | AM14-1-11 |
Weighing Range | 100-3000g | 100-3000g |
Accuracy | X(1) | X(1) |
Max Speed | 50P/M | 80P/M |
Hopper Volume | 5L | |
Control Panel | 7”Touch Screen | |
Options | Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1500W/50/60Hz/10A | 220V/1500W/50/60Hz/12A |

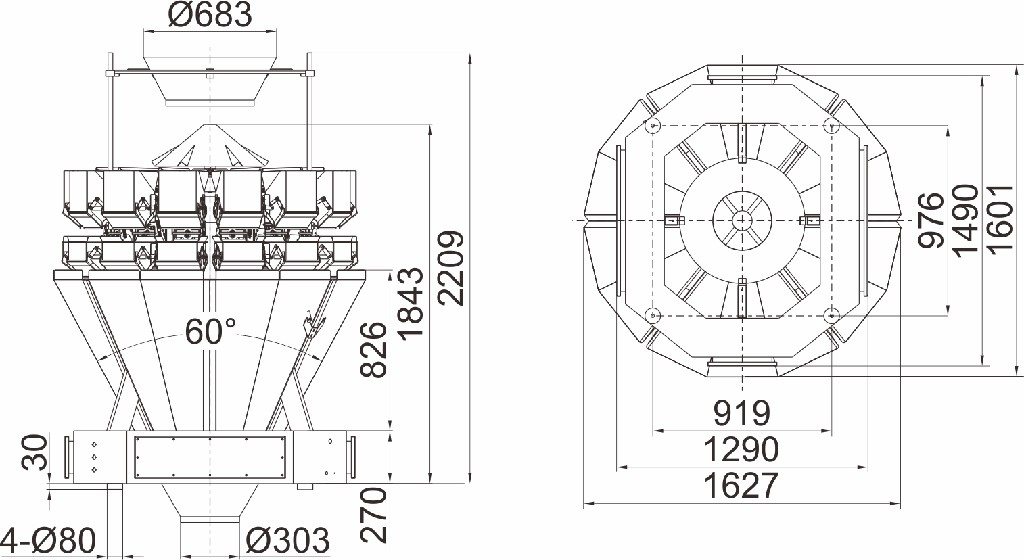

Packing Dimension(mm) | 1910(L)x1290(W)x1810(H) | 2195(L)x1380(W)x2060(H) |
Gross Weight | 700kg | 850kg |
