High speed 14 head granule multihead weigher machine for quantitative weighing tea, coffee beans


Standard multihead weigher is suitable for weighing small weight granules such as chinese medicine tablets, tea, coffee beans, chocolate beans, currants and other snack food, hardware, plastic particles and other particulate materials quantitative weighing.

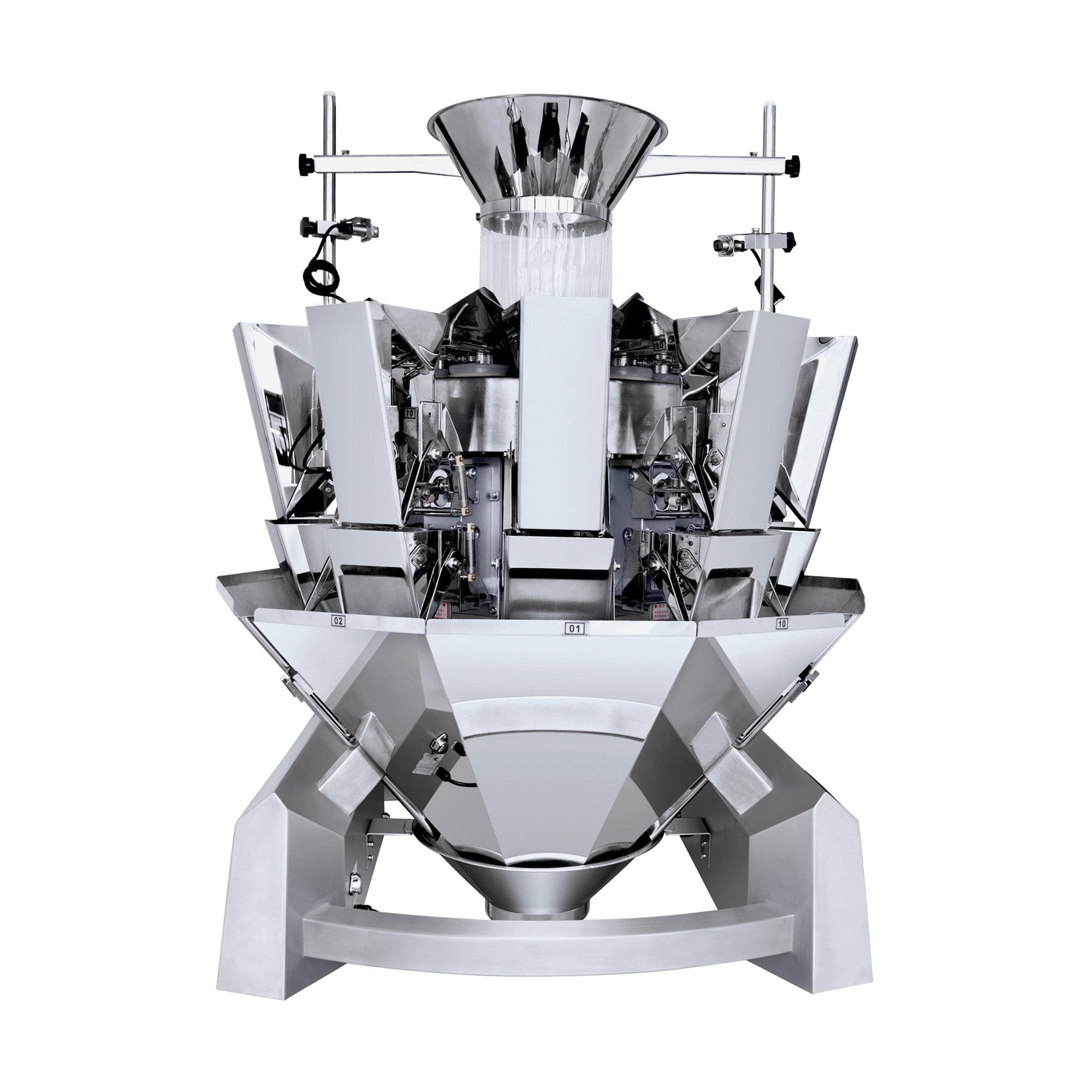

Standard multihead weigher


1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures and support multi-segment weight calibration.

3. Linear amplitude can be adjusted independently.

4. Many languages available for global markets.

5. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.

Mechanical character

1. New machine design —Ⅱseries, elegant appearance.

2. Easy moveable design for in-feed funnel and discharge funnel, which is more convenient to clean it.

3. Variously Optional accessories can meet various weighing requirements.

4. Mold making process and uniform design standards contribute to better interchangeability for spare parts.

5. Option: painted mild steel machine body.

Technical specification

Name1st G 10heads II Series Carbon Steel    Standard Multihead weigher1st G 14heads  II Series Carbon Steel Standard Multihead weigher1st G 10heads II Series Standard Multihead weigher1st G 14heads II Series Standard Multihead weigher
Identify CodeA10-1-17TA14-1-17TA10-1-17A14-1-17
Weighing Range10-1000g10-1500g10-1000g10-1500g
Max Speed65P/M120P/M65P/M120P/M
Hopper Volume1.6/2.5L
Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1000W/ 50/60Hz/8A220V/1200W/50/60Hz/10A220V/1000W/50/60Hz/8A220V/1200W/50/60Hz/10A

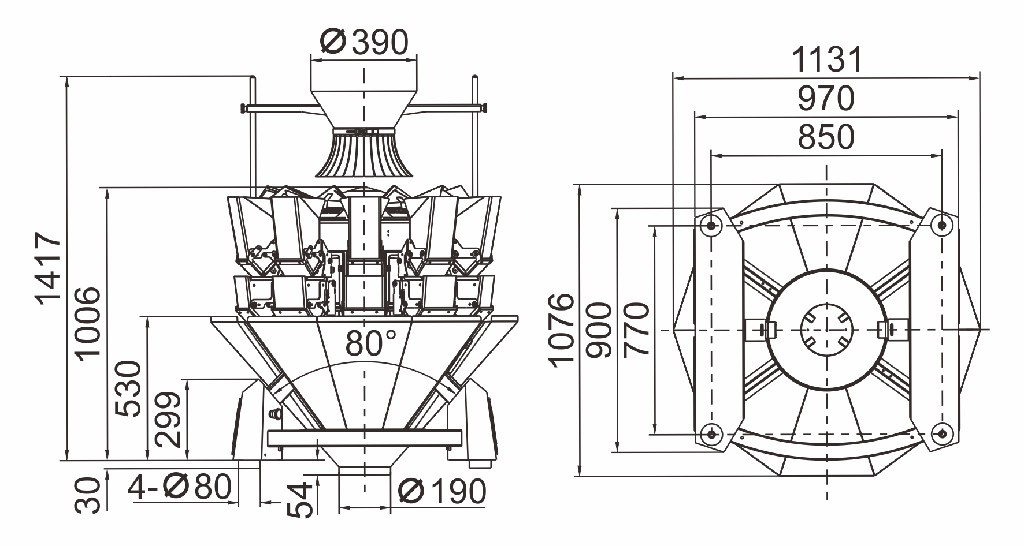

Packing Dimension(mm)1770(L)x1100(W)x1190(H)1770(L)x1100(W)x1190(H)1770(L)x1100(W)x1190(H)1770(L)x1100(W)x1190(H)
Gross Weight370kg470kg370kg470kg

Product Details
