Stable hardware multihead weigher packing machine for small hardwares plastics

Application

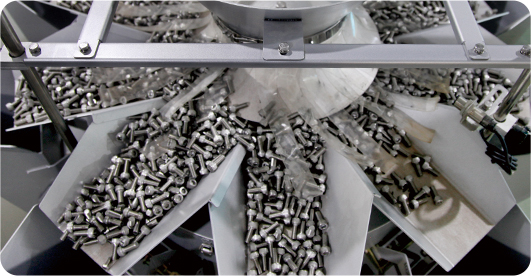

Hardware multihead weigher is suitable for weighing small hardwares and plastic parts, length is less than 80mm, single piece weight is less than 100g.

Hardware multihead weigher

Features

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures, Support multi-segment weight calibration.

3. No products auto pause function can improve weighing stability and accuracy.

4. Linear amplitude can be adjusted independently, can make the feeding more uniform.

5. 15 languages available for global markets.

6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

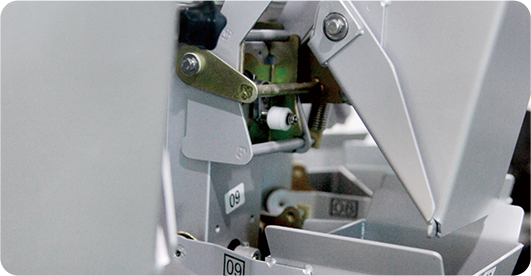

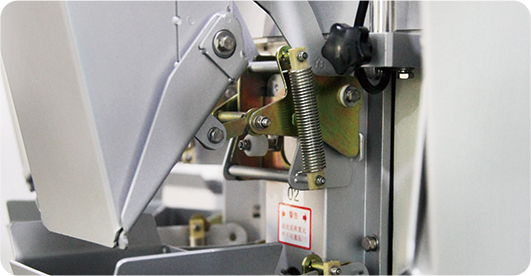

Mechanical character

1. Special load cell for hardware, has a strong impact resistance.

2. Material contacting parts added anti-noise PVC.

3. Enhanced linear vibrator.

4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

5. Thicker and stronger buckets be used.

Technical specification

ModelJW-A10JW-A14
Identify CodeA10-1-15A14-1-15
Weighing Range10-2000g10-3000g
AccuracyX(0.5)X(0.5)
Max Speed65P/M120P/M
Hopper Volume1.6L
Control Panel7”Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1000W/50Hz/60Hz/10A220V/1000W/50Hz/60Hz/10A

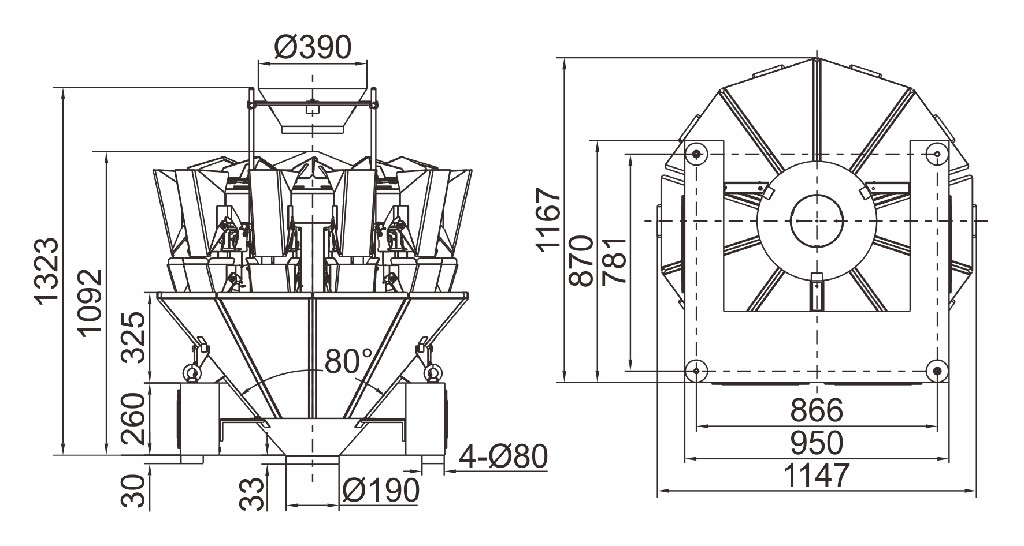

Packing Dimension(mm)1620(L)x1100(W)x1420(H)1700(L)x1130(W)x1280(H)
Gross Weight380kg480kg


Product Details
