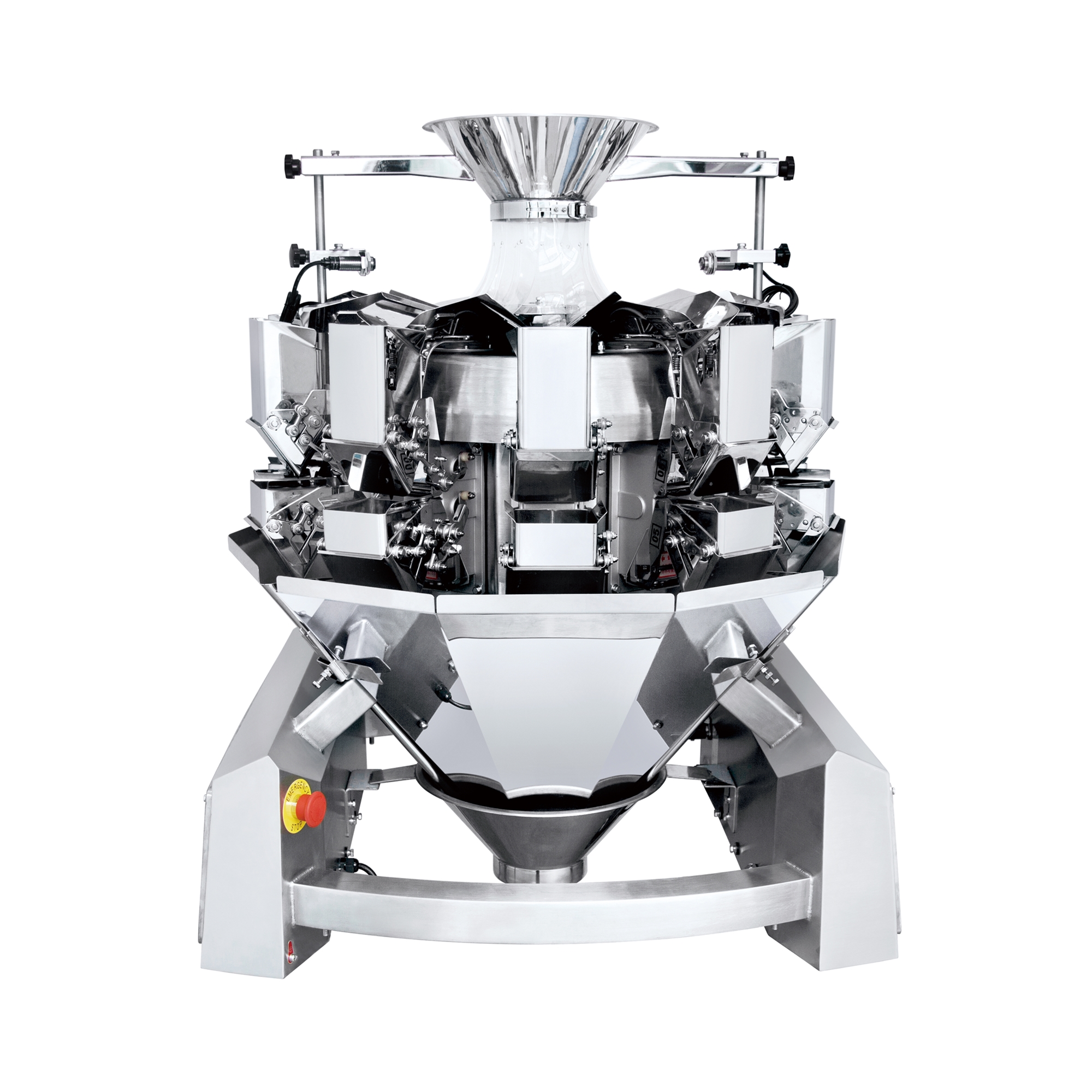

High precision 2-200g mini 10 head multihead weigher automatic packing weigher machine

Application

Mini multihead weigher is suitable for weighing small weight granules such as chinese medicine tablets, tea, coffee beans, chocolate beans, currants and other snack food, hardware, plastic particles and other particulate materials quantitative weighing.

application of Mini Multihead Weigher

Features

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures and support multi-segment weight calibration.

3. Linear amplitude can be adjusted independently.

4. Many languages available for global markets.

5. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.

Mechanical character

1. New machine design —II series, elegant appearance.

2. Easy moveable design for in-feed funnel and discharge funnel, which is more convenient to clean it.

3. Use weighing type for material detection to make accurate control of feeding time & material thickness and ensure weighing accuracy.

4. V feeder pan especially designed for small target weight to ensure even feeding and weighing accuracy.

5. New double parallel linear vibrator contributes to smaller vibration, side-driven actuator makes the reading more accurate and the weighing accuracy higher.

Technical specification

Name1st G 10heads II series mini multihead weigher1st G 14heads series mini multihead weigher
ModelJW-A10JW-A14
Identify CodeAS10-1-17AS14-1-17
Weighing Range2-200g2-200g
AccuracyX(0.5)X(0.5)
Max Speed60P/M120P/M
Hopper Volume0.5L
Control Panel7”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/800W/50/60Hz/8A220V/1100W/50/60Hz/10A
Packing Dimension(mm)1160(L)x900(W)x900(H)1160(L)x900(W)x900(H)
Gross Weight210kg230kg

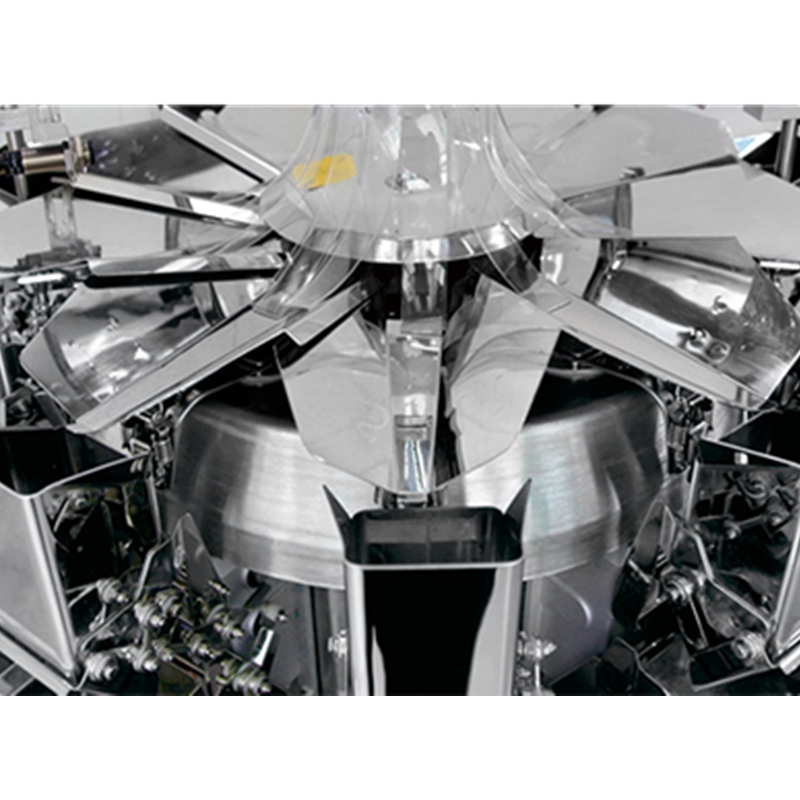

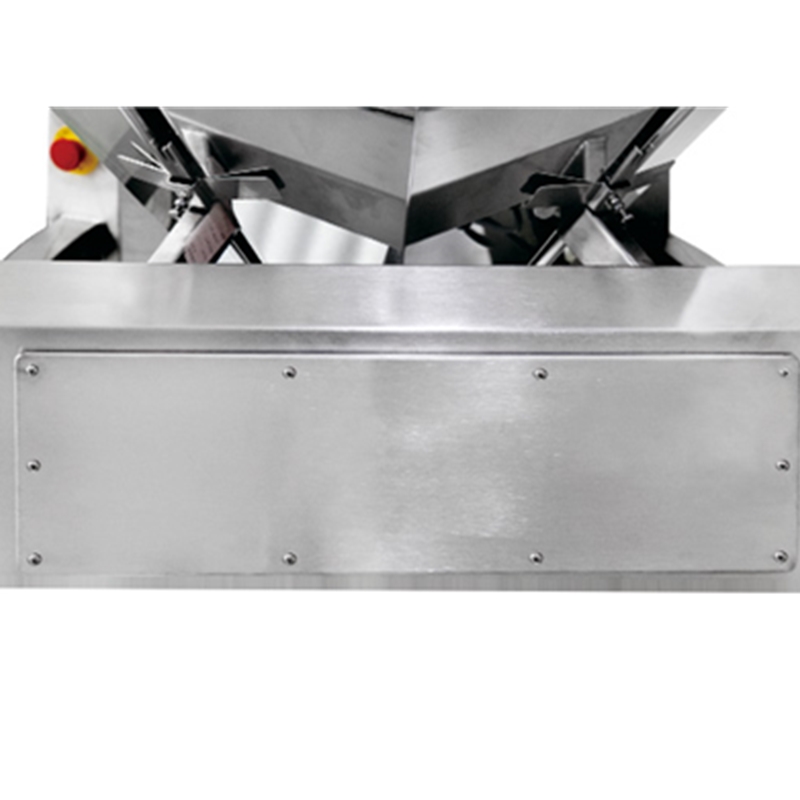

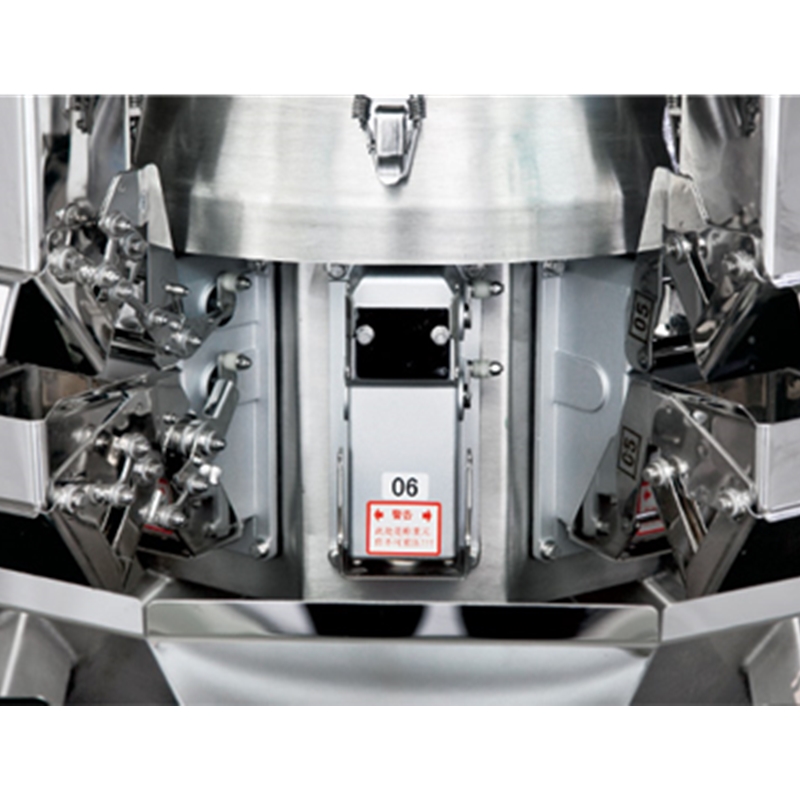

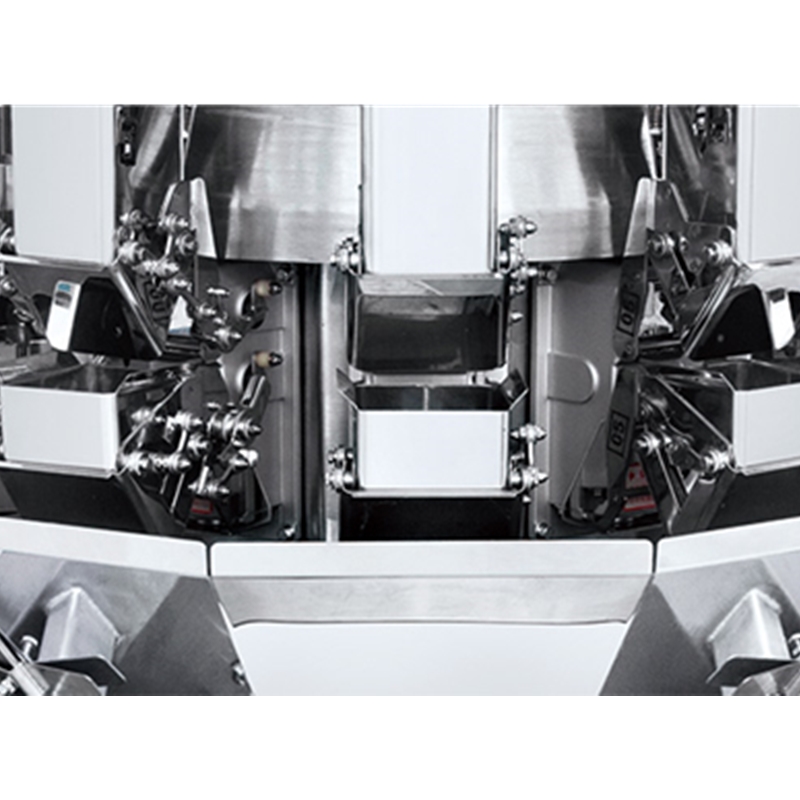

Product Details
