No-spring Multihead Weigher Machine is suitable for weighing candy, seeds, jelly, pet food, puffy foods, pistachio, peanut, nuts, raisins, dried fruits, snack foods, etc. Tips : Do not suit for small granule and product with
1. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
2. Program recovery function can reduce operation failures and support multi-segment weight calibration;
3. No products auto pause function can improve weighing stability and accuracy;
4. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;
5. Linear amplitude can be adjusted independently;
6. Many languages available for global markets.

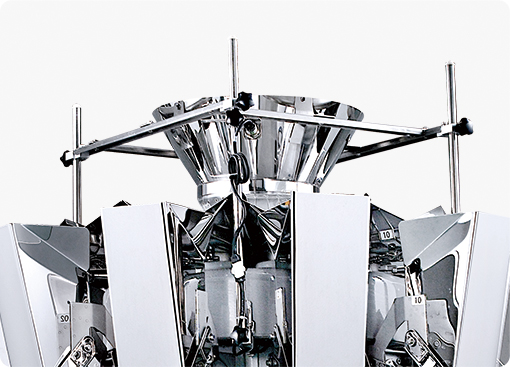

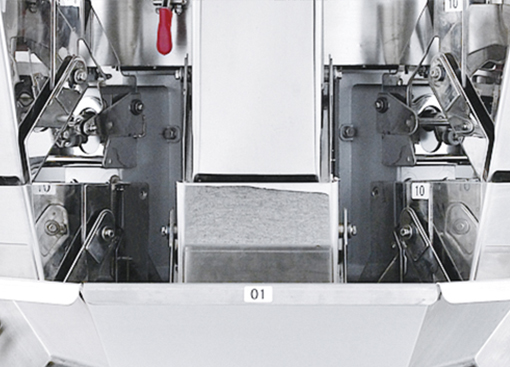

1. No-spring hopper with patent, economical and practical, cost-effective;
2. Use no-spring hopper to ensure food safety more effectively;
3. Mold making process and uniform design standards contribute to better interchangeability for spare parts;
4. Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy;
5. Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
Model | JW-A10 | JW-A14 |
Identify Code | A10-1-3 | A14-1-3 |
Weighing Range | 10-1000g | 10-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 60P/M | 100P/M |
Hopper Volume | 1.6L | |
Control Panel | 7”Touch Screen | |
Options | Dimple Plate/Timing Hooper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /12A |

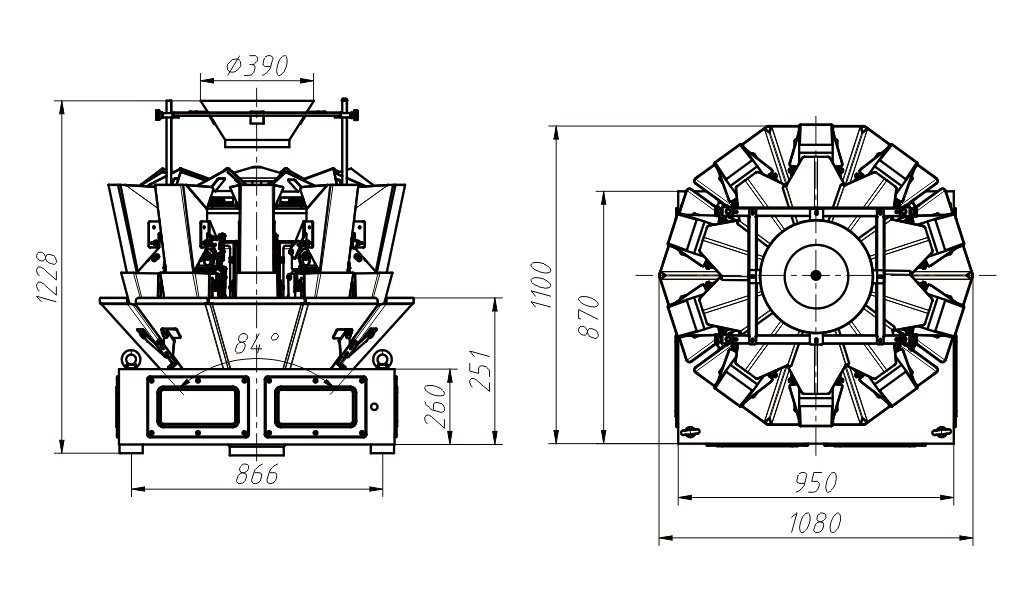

Packing Dimension(mm) | 1620(L)X1100(W)X1110(H) | 1700(L)X1110(W)X1265(H) |
Gross Weight | 380kg | 490kg |
