Automatic 14 heads salad weigher weighing combination scale machine for weighing fresh fruit

Application

2nd G salad weigher is suitable for weighing vegetable salad, fruit salad, potato, onion, tomato, cherry tomatoes, etc.

2nd G salad weigher

Features

1. Special load cell with high precision and high standard.

2. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.

3. Intelligent fault alarm, convenient for maintenance.

4. High speed staggered discharging function, effectively prevent blocking materials.

5. New highly integrated modular design, using CAN bus technology.

6. Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.


Mechanical character

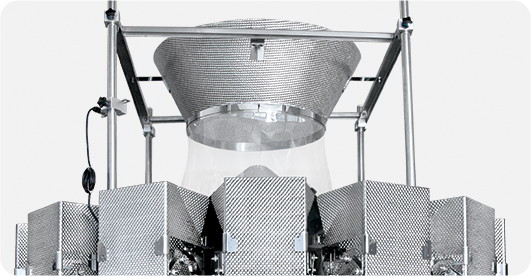

1. Speed adjustable rotary top cone is suitable for different product feeding.

2. Enhanced linear vibrator improves the flowability of material.

3. The inclined linear pan, ensure smooth feeding.

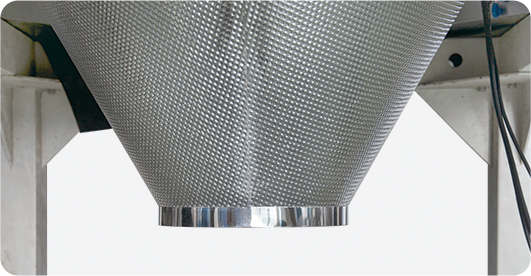

4. 60°dimple discharge chute contributes to less sticky problems.

5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.


Technical specification

ModelJW-AM14JW-AM16
Identify CodeAM14-2-11AM16-2-11
Weighing Range10-3000g10-3000g
AccuracyX(1)X(1)
Max Speed80P/M120P/M
Hopper Volume7.5L
Control Panel10.1”Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1500W/50/60Hz/12A220V/2000W/50/60Hz/16A

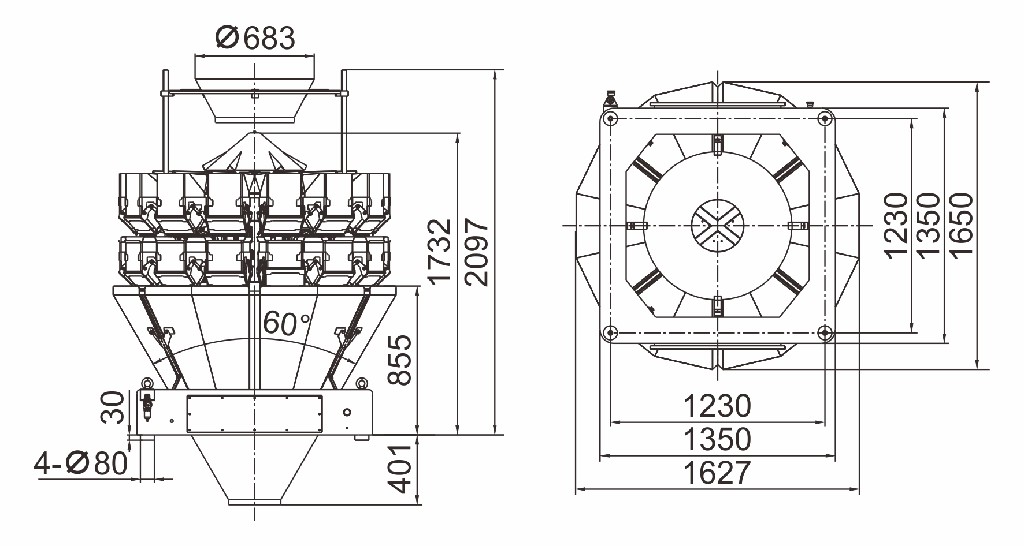

Packing Dimension(mm)2080(L)x1540(W)x1830(H)2200(L)x1540(W)x1900(H)
Gross Weight870kg870kg


Product Details
