Screw Feeding Weighing Packing Machine with 14 Heads Sticky Food Multihead Weigher


Two layers screw feeding weigher is suitable for weighing mustard, pickles, small fish etc., which with poor flowability.

Screw Feeding Weighing Packing Machine with 14 Heads Sticky Food Multihead Weigher


1. Special load cell with high precision and high standard.

2. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.

3. Intelligent fault alarm, convenient for maintenance.

4. High speed staggered discharging function, effectively prevent blocking materials.

5. New highly integrated modular design, using CAN bus technology.

6. Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.

Mechanical Character

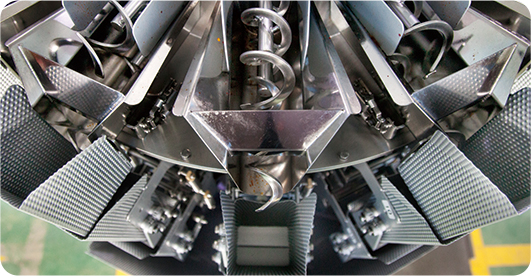

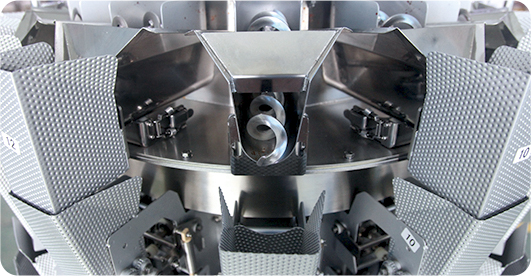

1. Two layers screw feeding scheme can control materials more precisely and is suitable for various viscous materials.

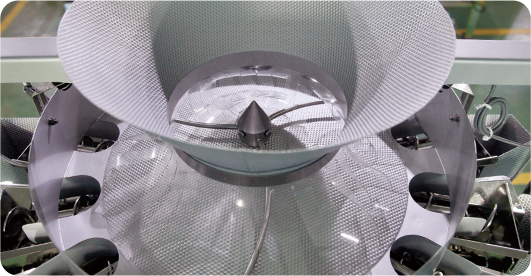

2. IP65 waterproof case is adopted, small dimple plate material is adopted for contact materials, and 60 degree feeding chute is used to make materials fall smoothly.

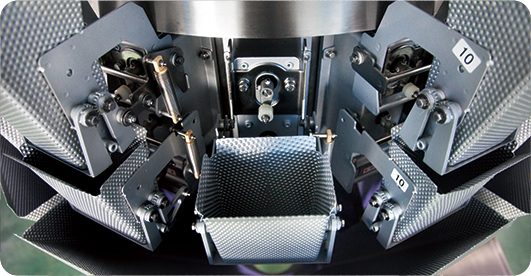

3. The scraper hopper can effectively solve the problem of material sticking on the hopper.

4. Double point material inspection is more accurate and effective to ontrol the thickness.

Technical Specification

Identify CodeA14-2-8
Weighing Range10-200g
Max Speed50P/M
Hopper Volume1L
Control Panel10.1”Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1500W/50/60Hz/10A

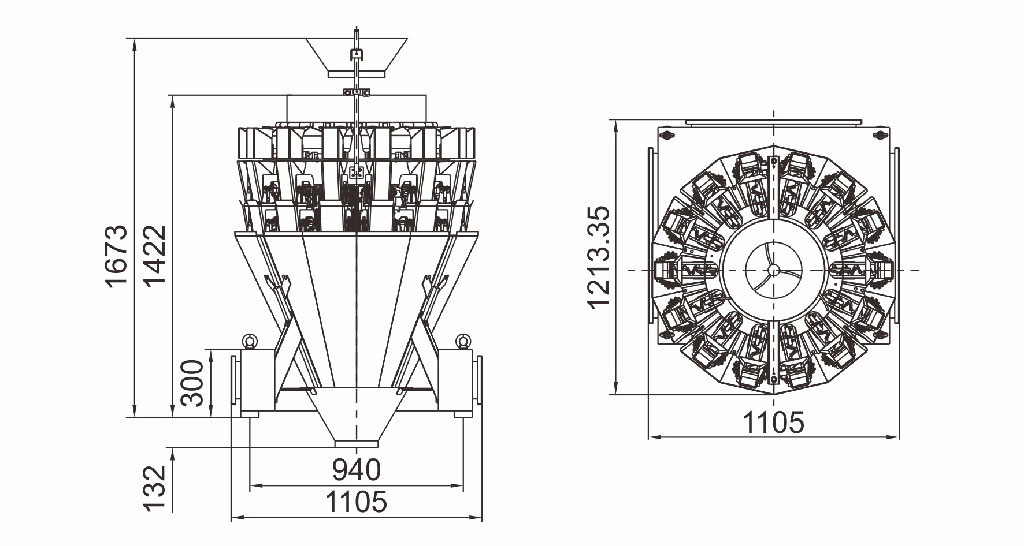

Packing Dimension(mm)1750(L)x1130(w)x1590(H)
Gross Weight490kg

Product Details
