Application

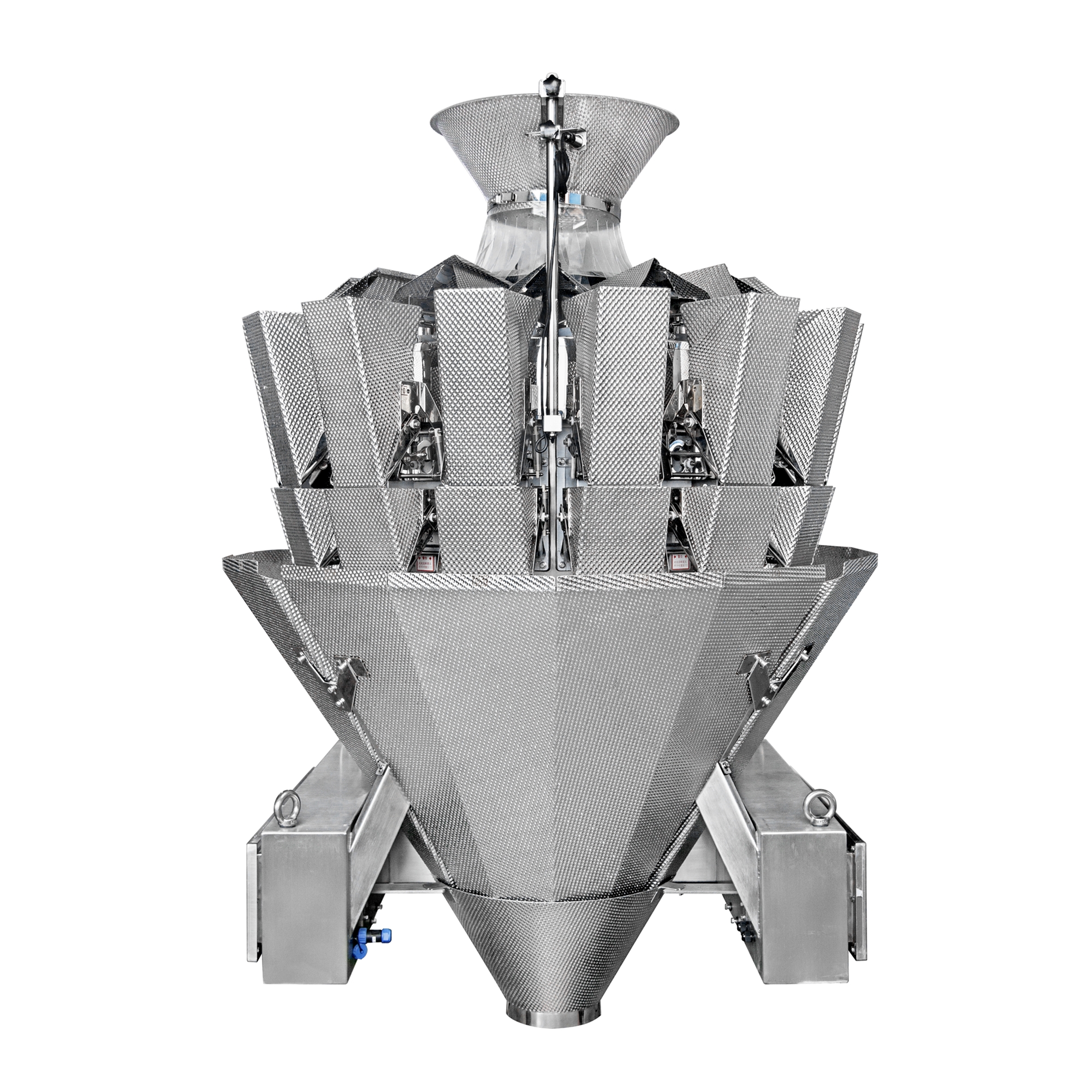

14 heads anchovy fish multihead weigher is suitable for materials with high viscosity and with much oil, it easy to stick on the hopper and material that can slide in the 60-angle discharged chute, such as spicy fish, sauce duck, etc.
Features
1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability.
4. Many languages are available for global markets.
5. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.
Mechanical character
1. Enhanced electromagnetic induction vibrator speeds up material feeding.

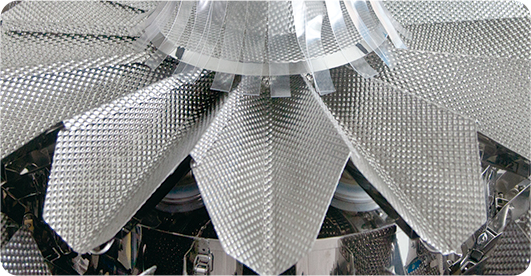

2. Inclined special linear vibration pan to ensure smooth flowing of materials.

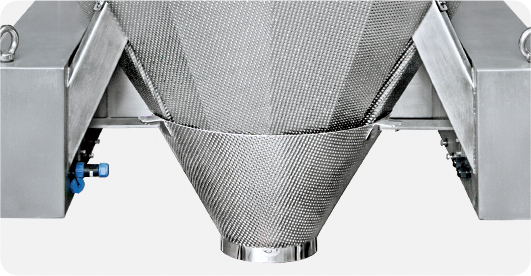

3. Discharged chute with small angle is better to the falling of materials, effective control of sticking problem.

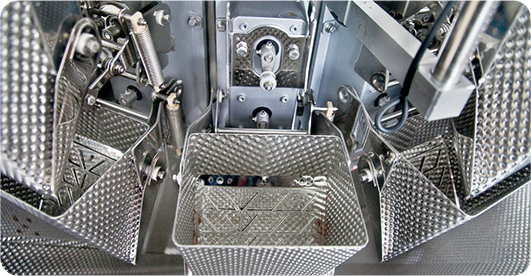

4. Special single-door open hopper, anti-adhesive design structure to ensure smooth flowing of materials, prevent sticking, and ensure weighing accuracy.
5. Weighing detection is optional, make accurate control of feeding time and thickness of material, ensure weighing accuracy.
Technical specification
Model | JW-A10 | JW-A14 |
Identify Code | A10-16 | A14-16 |
Weighing Range | 10~1000g | 10~1000g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 40P/M | 60P/M |
Hopper Volume | 1.6L | |
Control Panel | 7”Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 110/220V/1000W/50/60Hz/8A | 110/220V/1500W/50/60Hz/10A |

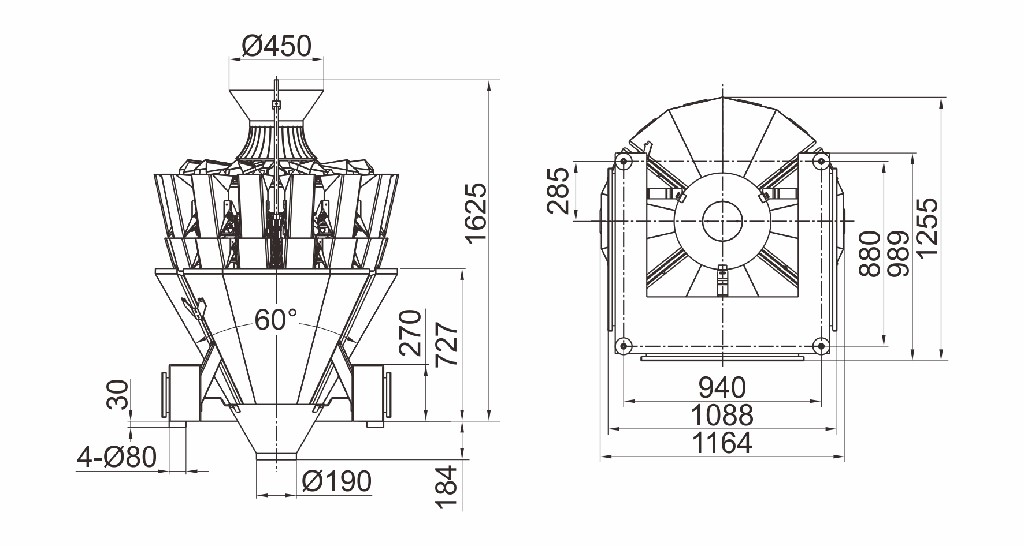

Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1750(L)x1160(W)x1420(H) |
Gross Weight | 380kg | 490kg |
