Automatic high accuracy cheese multihead weigher weighing machine for sticky food

Application

Cheese weigher is suitable for weighing soft and sticky material, such as cheese, jelly candy, cotton candy, preserved fruits, candied fruit, etc.

Cheese weigher

Features

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures, support multi-segment weight calibration.

3. No products auto pause function can improve weighing stability and accuracy.

4. Linear amplitude can be adjusted independently, can make the feeding more uniform.

5. 15 languages available for global markets.

6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical character

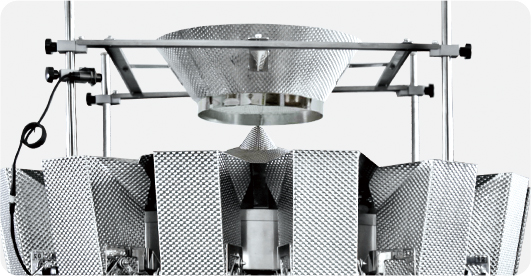

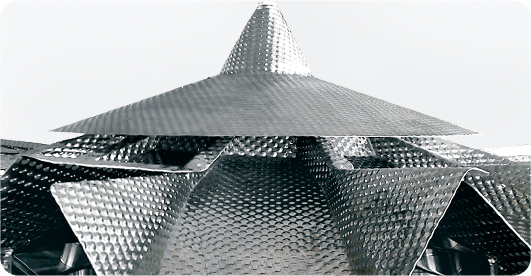

1. Speed adjustable rotary top cone is suitable for different product feeding.

2. Enhanced linear vibrator improves the flowability of material.

3. The declinational special linear vibrator pan, ensure smooth feeding.

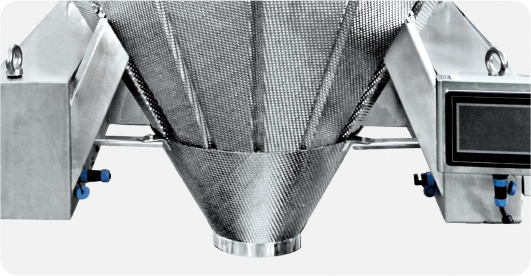

4. 60° dimple discharge chute contributes to less sticky problems.

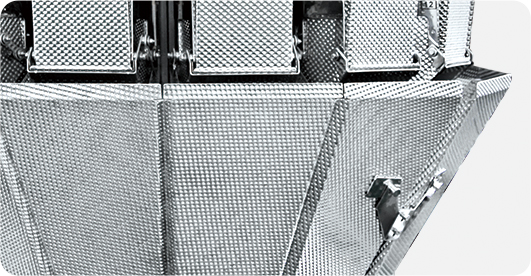

5. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Technical specification

ModelJW-A10JW-A12JW-A14
Identify CodeA10-1-12A12-1-12A14-1-12
Weighing Range10-1000g10-1500g10-1500g
AccuracyX(0.5)X(0.5)X(0.5)
Max Speed60P/M100P/M100P/M
Hopper Volume1.6L/2.5L
Control Panel7”Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1000W/50/60Hz/10A220V/1200W/50/60Hz/10A220V/1500W/50/60Hz/10A

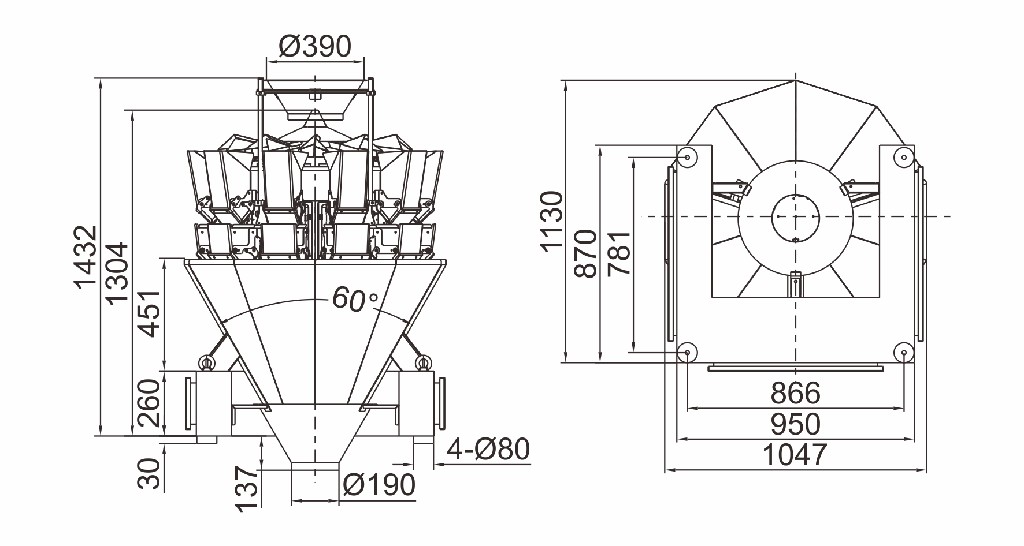

Packing Dimension(mm)1620(L)x1100(W)x1420(H)1700(L)x1100(W)x1130(H)1750(L)x1130(W)x1420(H)
Gross Weight380kg450kg490kg


Product Details
