Strong flowability three layers 8 head combination weigher machine for weighing sticky materials

Application

4th G three layers screw feeding weigher is suitable for weighing mustard, pickles, small fish and other irregular sticky materials with poor flowability.

4th G three layers screw feeding weigher

Features

1. Special load cell with high precision and high standard.

2. Intelligent fault alarm, convenience for maintenance.

3. High speed staggered discharging function, effectively prevent blocking materials.

4. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.

Mechanical character

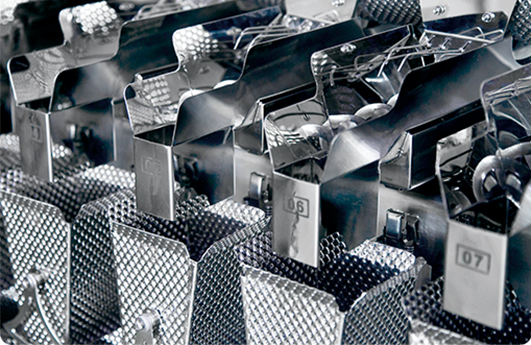

1. Linear arrangement with three layer hopper structure, effectively reduce space.

2. The upper hopper has a stirring device, which effectively solves the sticky material feeding problem.

3. Screw feeding to replace the traditional vibrator feeding, it’s more suitable for sticky material.

4. Belt collection makes the material collect easier, faster and more efficient.

5. Stable actuator structure makes the hopper running more stable and reading higher accuracy.

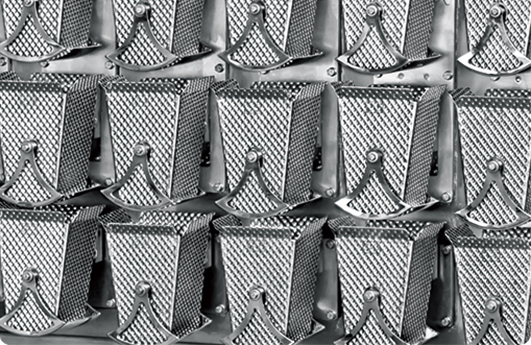

6. The scraper hopper can effectively solve the problem of material sticking on the hopper.

Technical specification

ModelJW-A8
Identify CodeA8-4-2
Weighing Range10-200g
AccuracyX(0.5)
Max Speed60P/M
Hopper Volume1.5L
Control Panel10.1”Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1000W/50/60Hz/10A

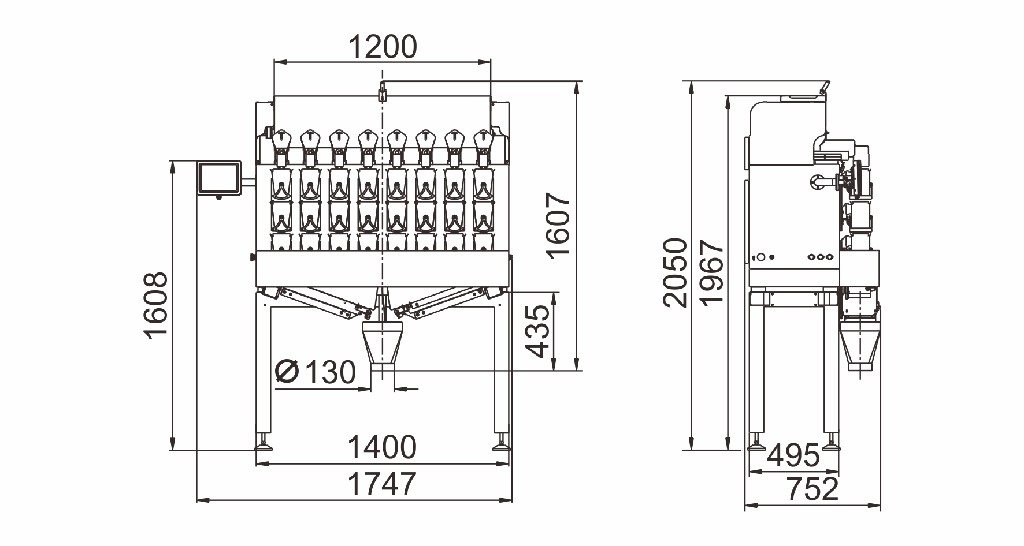

Packing Dimension(mm)2100(L)x900(W)x1290(H)
Gross Weight300kg


Product Details
