Fully Automatically Weighing Rice Noodles Multihead Combination Weigher for Sticky Food


Noodle weigher is suitable for weighing soft strip products such as noodles, rice noodles, bean sprout, etc.

Fully Automatically Weighing Rice Noodles Multihead Combination Weigher for Sticky Food


1.Special load cell with high precision and high standard.

2.Program recovery function can reduce operation failures and support multi-segment weight calibration.

3.No products auto pause function can improve weighing stability.

4.Linear amplitude can be adjusted independently.

5.Many languages available for global markets.

6.100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.

Mechanical Character

1. Suitable for products with max 300mm length.

2. IP65 cabinet design, dimple plates for food contact parts.

3. Air pressure system built in cabinet prevents the electronic components from damage due to humidity.

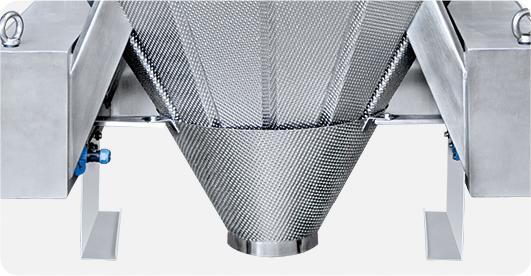

4. 60° steep discharge chute makes sure products discharge smoothly.

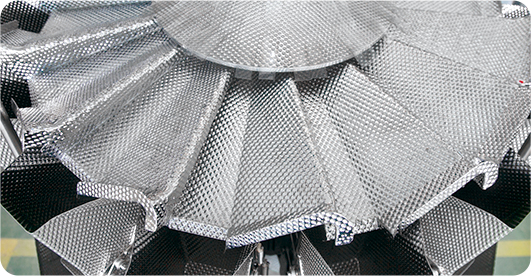

5. Adjustable Rotary top cone to make feeding averagely to each linear pan.

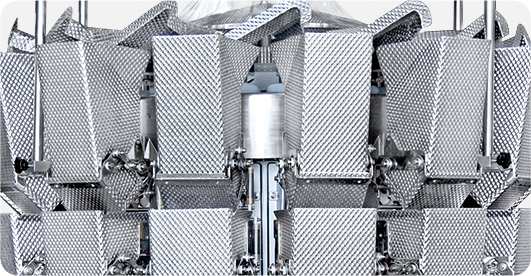

6. Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

Technical Specification

Identify CodeA10-1-6A14-1-6
Weighing Range10-1000g10-1500g
Max Speed30P/M60P/M
Hopper Volume2.5L
Control Panel7”Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement200V/1000W/50/60/Hz/10A220V/1500W/50/60Hz/12A

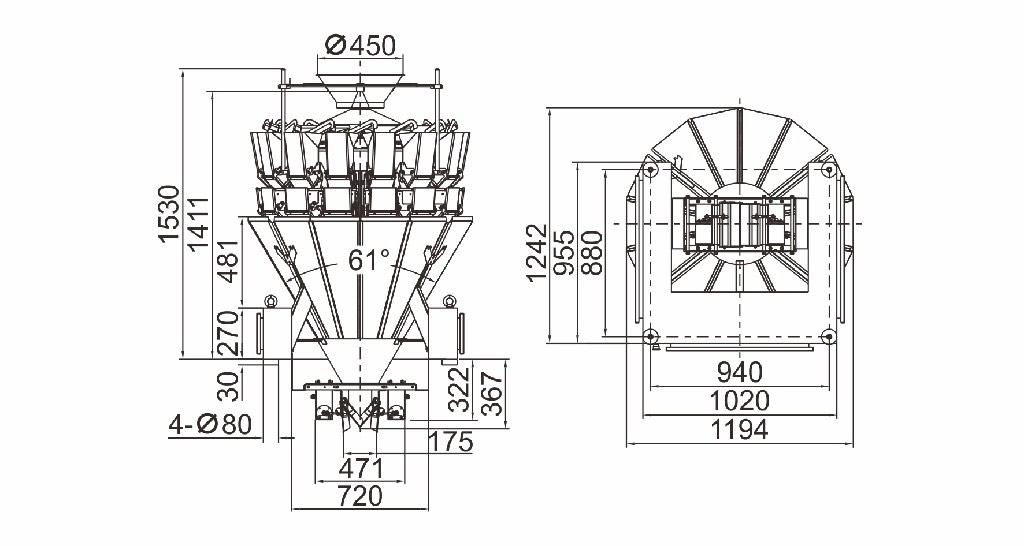

Packing Dimension(mm)1620(L)x1100(W)x1420(H)1750(L)x1160(W)x1420(H)
Gross Weight380kg490kg
